Baja Designs Bronco Fog Pocket Kit 21-Up Ford Bronco Sportsmen
Style, fitment, performance, and ease of installation. This kit is designed for the Ford Bronco enthusiast that is looking to light up the trail with ample light, and differentiate yourself from the pack.
This kit specifically utilizes a set of S2 Sports in Driving/Combo, a set of S2 Sports in Wide Cornering, and a set of Squadron Sports in Spot.
The brackets used to mount this performance oriented light setup ensure no cutting or drilling, and the wiring that is included will allow for the lights to be operated from a toggle switch in the cab.
This is a comprehensive kit and does not require any additional parts for installation.
Description
- Lumens:?á3,150 Utilizing 4 LEDs
- Wattage/Amps:?á26W / 2A
- Dimensions:?á3.07 inch x 2.77 inch x 3.07 inch
- Weight:?á12 ounces
- LED Life Expectancy:?á49,930 Hours
- Front Lens:?áHard Coated Polycarbonate
- Housing:?áPowder Coated Cast Aluminum
- Bezel:?áBillet Machined Aluminum
- Hardware and Bracket Material:?áStainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)
Specifications (Per S2 Sport):
- Lumens: 1,130 Utilizing 2 LEDs
- Wattage/Amps: 12W / .9A
- Dimensions: 2.93 inch x 1.76 inch x 1.68 inch
- Weight: 8 ounces
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Hard Anodized and Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft and Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
Baja Designs Features:
Satisfactions Guarantee -?á30 Day Money Back Guarantee
Limited Lifetime Warranty?á- Complete Purchase Protection
uService?á- Replaceable Lenses And Optics
ClearView?á- All The Light, Right Where You Need It.
MoistureBlock - Waterproof, Rain Proof, Submersible
CopperDrive?á- Only LED Driven At 100 percent
5000K Daylight?á- Less Driver Fatigue, Natural Color
Application:
Ford Bronco (21 - On)

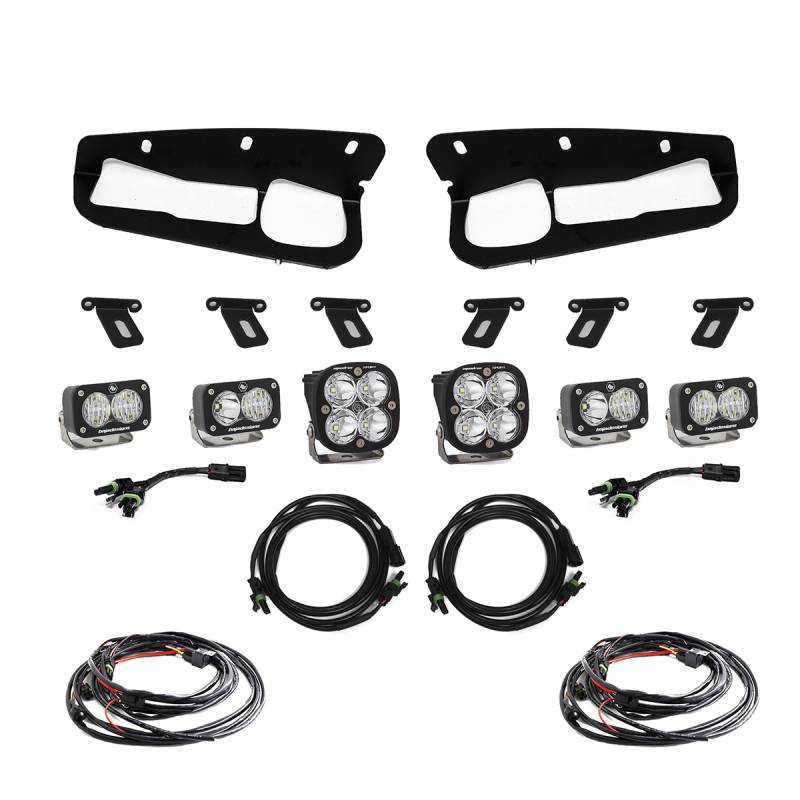

Included:
- S2 Sport, Driving/Combo Pair
- S2 Sport, Wide Cornering Pair
- Squadron Sport, Spot Pair
- x2 Bracket Fascia Pieces
- x6 Light Mounts
- x2 Toggle Switch Harnesses
- x2 55 inch Splitters
- x2 small Splitters
Driving/Combo:?á Maximum trail coverage in a single light.?á The Driving/Combo pattern is equipped with both Driving (42 degree) and spot (9 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering:?áBD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
Spot:?áA longer and narrower 9 degree beam focus for illumination further down the trail or road.?á The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
Work/Scene:?áExcellent work light or inchscene light inch with an extremely smooth?á120 degree circle that projects about 40ft.?á This pattern is not suitable for driving. (Lighting Zone 7)
Product Series
Details
Shipping Information
- Item Requires Shipping
- 7.0 lbs.
- W10.0000” x H8.0000” x L12.0000”
- Free Shipping!
