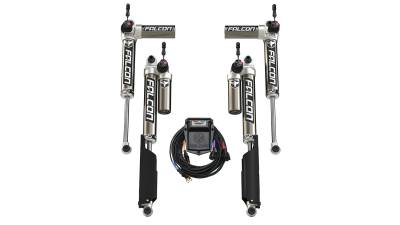

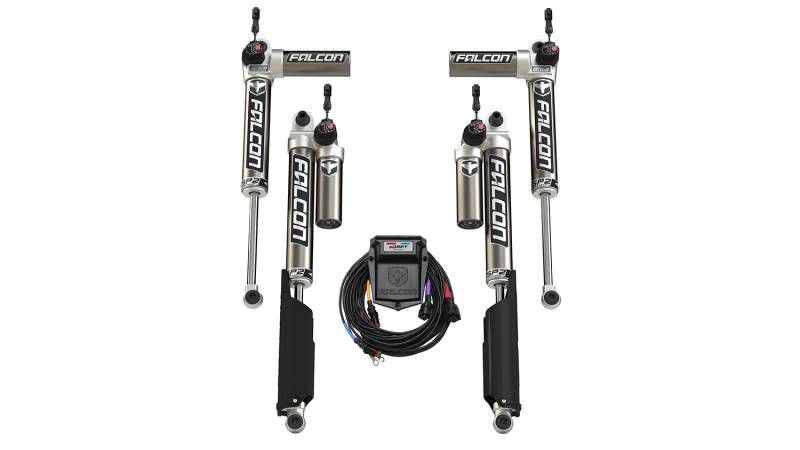

TeraFlex JL 4dr EcoDiesel: Falcon SP2 3.5 aDAPT Piggyback Shock Kit (2–4.5” Lift)

Gain more control over your suspension tuning with the Falcon SP2 3.5 aDAPT Piggyback Shocks! In addition to the 8-Position Dial, these shocks can be programmed to automatically switch from Soft to a manually preselected Firm setting depending on terrain. The aDAPT Control Module’s 3-position In-Cab Switch includes Soft, Firm, and Auto settings.
SP2 3.5 aDAPT:
• SP2 3.5 aDAPT Piggyback Shocks offer a wide range of adjustability for specific terrain and/or handling characteristics
• In Auto Setting, the aDAPT Control Module automatically switches from Soft to a manually preselected Firm setting based on driver selectable minimum “G” threshold
• The desired Firm setting is controlled manually by the 8-Position Dial
• aDAPT Control Module adjustment parameters: forward acceleration, lateral acceleration, braking
• Each parameter is set separately
• Firm mode duration can be set between 1–5 seconds
• 3-position In-Cab Switch settings include: Soft, Firm, Auto
• Can also be manually adjusted from Soft to preset Firm setting
• Using the Falcon App, multiple presets can be created and used for different driving conditions
• Calibrate aDAPT Control Module for various install orientations
JL EcoDiesel:
• JL corner-specific shock absorber w/ race-inspired performance
• Front lower offset eyelet design provides maximum shock body to frame clearance during articulation
• EcoDiesel specific front shocks feature a modified reservoir body for proper fitment
• Rear roost guards prevent shock shaft damage from rocks kicked up by the tires
• Rear shocks clear DEF tank and exhaust system while maintaining maximum travel
Piggyback:
• Piggyback design increases oil and gas capacity for reduced heat
• Flows 6x more oil than restrictive reservoir hose designs
• Eliminates common leakage issues found in banjo and swivel fittings
• Front shocks’ unique horizontal piggyback reservoir increases tire clearance
