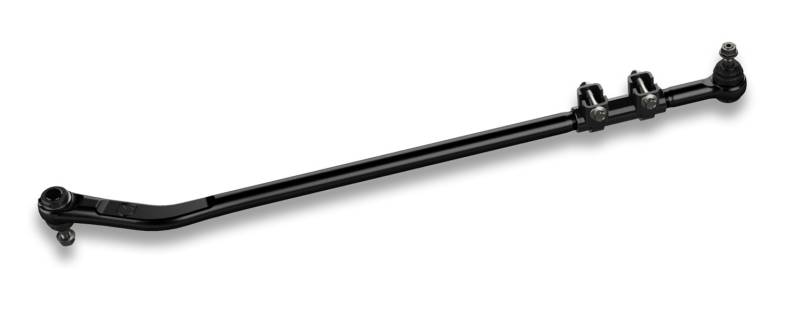

TeraFlex JK: HD Drag Link Flip Kit (RHD – No Flip)

The TeraFlex JK: HD Drag Link Flip Kit withstands extreme conditions and abuse that typically causes factory steering components to bend and fail on lifted JK Wrangler/Unlimited models.



Fits:


• Dana 30 front axle

• Dana 44 front axle



Drag Link Flip Kit:


• JK Wrangler (2-door) – Left-Hand-Drive

• JK Wrangler Unlimited (4-door) – Left-Hand-Drive

• 4-6” Lift



Drag Link Kit:


• JK Wrangler (2-door) – Right-Hand-Drive

• JK Wrangler Unlimited (4-door) – Right-Hand-Drive

• 0-3” Lift



Includes:


• HD Drag Link Kit



Features & Benefits:


• Relocates drag link over the knuckle to the top of the knuckle’s steering arm (Left-Hand-Drive only)

• Bolts directly to new High Steer Knuckle (not included)

• 50% stiffer than factory drag link to help eliminate front end shimmy and other alignment issues

• 1.25” O.D. fully forged drag link eliminates excess movement during hard steering maneuvers

• Utilizes oversized DOM factory-style adjusting collar and pinch clamp for simple adjustments

• Tie rod joint incorporates same features found in TeraFlex Ball Joints, including 4140 chromoly ball/stud and 1045 carbon steel housing

• Adjustable joint preload tension to ensures proper long-term durability

• Joint is pressed into rod end housing and secured w/ snap ring

• Provides clearance for factory 17” wheels




Note(s):


• REQUIRES aftermarket wheels w/ 4.75” backspacing or less – or Offset Wheel Adapters (# 1055000) for stock wheels – NOT INCLUDED.

• REQUIRES additional modifications/components to flip the Drag Link over the axle to correct track bar angle, optimize steering geometry, and improve handling – NOT INCLUDED.

• High Steer Knuckle Kit (# 4390870) Front Track Bar Drop Bracket & Frame Brace Kit (# 1600444), HD Tie Rod (# 1853910), and Steering Stabilizer Relocation Mounting Bracket (# 1123160) available separately.




Install Time: 1.5 Hours
