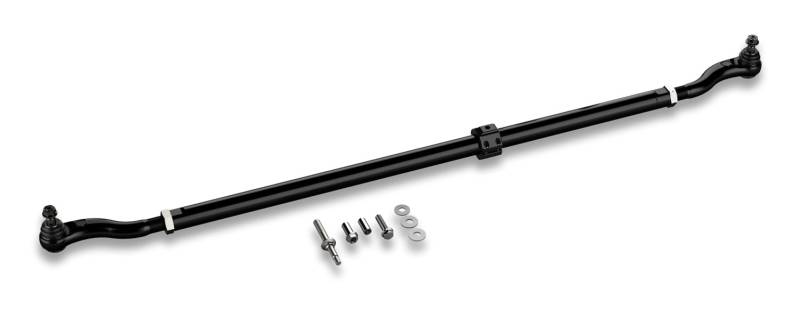

TeraFlex JK: HD Tie Rod Kit

The TeraFlex JK: HD Tie Rod Kit withstands extreme conditions and abuse that typically causes factory steering components to bend and fail on lifted JK Wrangler/Unlimited models.



Fits:


• JK Wrangler (2-door)

• JK Wrangler Unlimited (4-door)



• Dana 30 front axle

• Dana 44 front axle



• 0-6” Lift





Includes:


• HD Tie Rod

• Steering Stabilizer Relocation Mount Bracket Kit– HD Tie Rod (# 1123160)

• All necessary hardware




Features & Benefits:


• Installation does not require any cutting or removal of factory bracketry

HD Tie Rod (# 1853910)


• HD 1-5/8” O.D. (42mm) 4140 heat treated chromoly steel

• More than 200% stronger than factory tie rod

• Forged tie rod housing designed specifically for JK/JKU Wrangler

• Tie rod end joint incorporates same features found in TeraFlex ball joints, including 4140 chromoly ball/stud and 1045 carbon steel housing

• Features adjustable rod end preload tension to ensure long-term durability

• The joint is pressed into the rod end housing and secured w/ a snap ring

• Tie rod end joint rotation is limited to 14 degrees of movement to minimize tie rod roll

• Provides clearance for factory 17” wheels

• Steering Stabilizer Relocation Mount Bracket Kit– HD Tie Rod (# 1123160)

Steering Stabilizer Relocation Mount Bracket Kit– HD Tie Rod (# 1123160)


• Fits heavy-duty 1-5/8” or 42mm tie rod

• 6061-T6 aluminum clamp and forged 10.9 grade stud

• Moves steering stabilizer up nearly 2.5” to help reduce damage to the stabilizer shaft or body

• Repositions stabilizer to reduce “tie rod roll” associated w/ stabilizer misalignment






Note(s):


• REQUIRES welding.

• This kit MUST be used w/ a HD Drag Link Flip Kit (w/ HD Tie Rod Kit: # 1853905; w/out Tie Rod Kit: # 1853930). May require additional modifications to maintain correct steering geometry and improve handling.






Install Time: 1.5 Hours
