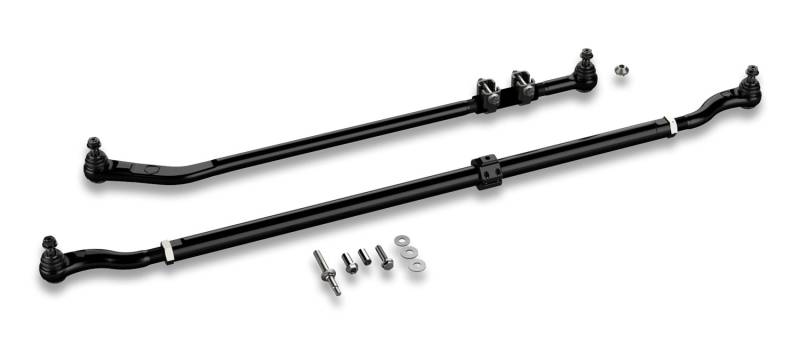

TeraFlex JK: HD Drag Link Kit & HD Tie Rod Kit

The TeraFlex JK: HD Drag Link Kit & HD Tie Rod Kit withstands extreme conditions and abuse that typically causes factory steering components to bend and fail on lifted JK Wrangler/Unlimited models.

FEATURES/BENEFITS

HD Drag Link Kit – (# 1853920)

• Bolts directly to new High Steer Knuckle (not included)
• 50% stiffer than factory drag link to help eliminate front end shimmy and other alignment issues
• 1.25” O.D. fully forged drag link eliminates excess movement during hard steering maneuvers
• Utilizes oversized DOM factory-style adjusting collar and pinch clamp for simple adjustments
• Tie rod joint incorporates same features found in TeraFlex Ball Joints, including 4140 chromoly ball/stud and 1045 carbon steel housing
• Adjustable joint preload tension to ensures proper long-term durability
• Joint is pressed into rod end housing and secured w/ snap ring
• Provides clearance for factory 17” wheels

HD Tie Rod (# 1853910)

• HD 1-5/8” O.D. 4140 heat treated chromoly steel
• More than 200% stronger than factory tie rod
• Forged tie rod housing designed specifically for JK Wrangler
• Tie rod end joint incorporates same features found in TeraFlex ball joints, including 4140 chromoly ball/stud and 1045 carbon steel housing
• Features adjustable rod end preload tension to ensure long-term durability
• The joint is pressed into the rod end housing and secured w/ a snap ring
• Tie rod end joint rotation is limited to 14 degrees of movement to minimize tie rod roll
• Provides clearance for factory 17” wheels
• Steering Stabilizer Relocation Mount Bracket Kit – HD Tie Rod (# 1123160)

Steering Stabilizer Relocation Mount Bracket Kit – HD Tie Rod (# 1123160)

• Fits heavy-duty 1-5/8” tie rod
• 6061-T6 aluminum clamp and forged 10.9 grade stud
• Moves steering stabilizer up nearly 2.5” to help reduce damage to the stabilizer shaft or body
• Repositions stabilizer to reduce “tie rod roll” associated w/ stabilizer misalignment

INCLUDES

• HD Drag Link Kit (# 1853920)
• HD Tie Rod (# 1853910)
• Steering Stabilizer Relocation Mount Bracket Kit – HD Tie Rod (# 1123160)

VEHICLE FITMENT INFO

Fits:

• JK Wrangler (2-door)
• JK Wrangler Unlimited (4-door)

• Dana 30 front axle
• Dana 44 front axle

• 0-3” Lift

PRODUCT NOTES

• REQUIRES aftermarket wheels w/ 4.75” backspacing or less – or Offset Wheel Adapters (# 1055000) for stock wheels – NOT INCLUDED.

RELATED ITEMS

• HD Drag Link Kit (# 1853920)
• HD Tie Rod (# 1853910)
• Steering Stabilizer Relocation Mount Bracket Kit – HD Tie Rod (# 1123160)

INSTALL TIME

1.5 Hours
