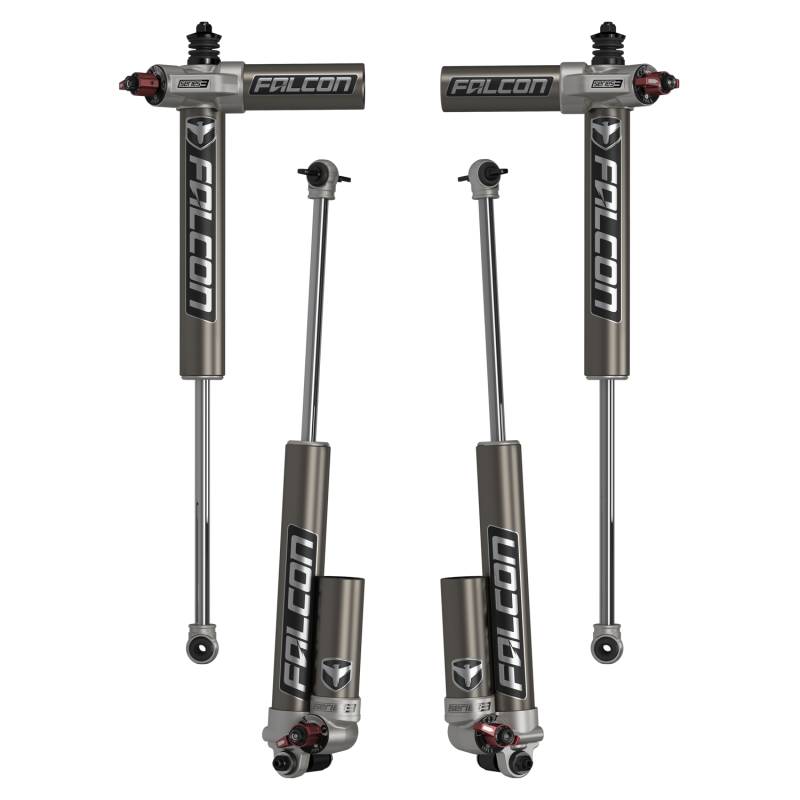

TeraFlex JK 2dr: Falcon Series 3.3 Fast Adjust Piggyback Shock Kit (1.5-2.5” Lift)

Falcon Series 3.3 Fast Adjust Piggyback Shocks offer a wide range of adjustability with their easy-to-use 3-position Fast Adjust Knob. Settings include Soft, Custom, and Firm. The Custom setting incorporates an 8-Position Dial for more precise tuning.

“High-Value Performance” is the driving force behind our vehicle-specific dampers for Jeeps, trucks, and SUVs. These Jeep-specific shock absorbers deliver increased stability, improved ride quality, and comfort for daily driven vehicles as well as race-inspired performance, handling, and stability for off-road rigs. Falcon Performance Shocks by TeraFlex.

Fits:

• JK Wrangler (2-door)

• 1.5-2.5” Lift

Includes:

• Series 3.3 Fast Adjust Piggyback Shocks – all 4
• All necessary hardware

Features & Benefits:

Series 3.3 Fast Adjust Piggyback Shocks:

• Series 3.3 Fast Adjust Piggyback Shocks offer a wide range of adjustability for specific terrain and/or handling characteristics
• Fast Adjust Knob w/ 3 compression settings for large damping adjustments
• Settings include: Soft, Custom, Firm
• Custom setting includes an 8-Position Dial for finer damping adjustments
• Ideal for daily driven Jeeps as well as the serious enthusiast wanting to adjust damping for all driving conditions

JK Falcon Shocks:

• JK corner-specific shock absorber w/ race-inspired performance
• Front upper offset stud design provides maximum shock body to frame clearance during articulation
• Outboard mounting increases clearance for lifted vehicles w/ raised track bar brackets
• Rear shock body (all) and reservoir (piggyback) positioned on bottom eliminates shaft damage from rocks kicked up by the tires
• Rear Shock Skid Plates available separately

Falcon Series 3 Piggyback Shocks:

• Piggyback design increases oil and gas capacity for reduced heat
• Flows 6x more oil than restrictive reservoir hose designs
• Eliminates common leakage issues found in banjo and swivel fittings
• Front shocks’ unique horizontal piggyback reservoir increases tire clearance
• Cartridge Upgrade Kits are available separately – contact customer service for details

Falcon Performance Shocks (all):

• Vehicle-specific shock absorbers
• Race-inspired performance for increased vehicle stability
• Improved dynamic roll control and low-speed damping
• Dramatic improvement in on-road comfort and off-road performance
• Optimized fitment for unobstructed suspension travel and articulation
• 2.25” shock body provides optimal performance
• 6061-T6 aluminum alloy shock body resists Impact to protect internal components
• Smooth honed internal shock body surface for long-term performance
• 3/4” induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling
• Large shaft diameter provides a wide range of adjustment on adjustable shocks
• Hard anodized 6061-T6 aluminum alloy billet piston
• 1-piece Teflon bronze piston wear band w/ O-ring
• VOD (Volume Optimized Damping) features a digressive linear piston for quicker ramp-up and increased damping volume
• VOD reduces shock bottoming at full compression or over uneven terrain
• OGS (Oil/Gas Separator) prevents cavitation
• High-viscosity, full synthetic Red Line shock oil for consistent performance across all temperatures
• Synthetic formula also contains special anti-wear and lubricity agents
• 1,000-hour salt spray corrosion resistance test on all hardware
• Serviceable and rebuildable (factory serviced)
• Designed, engineered, and assembled in-house from domestic and globally sourced components
• Patented design
• 3-year warranty

Note(s):

• Bump stop configuration varies depending on shock absorber collapsed length, tire size, and fenders – See instructions for proper configuration for your application.

Install Time: 1.5 Hours

Configurations:

JK 2-Door:

• 1.5-2.5” Lift (# 02-01-33-400-002)
• 3-4.5” Lift (# 02-01-33-400-253)
• 5-6” Lift (# 02-01-33-400-406)

JK 4-Door:

• 1.5-2.5” Lift (# 03-01-33-400-002)
• 3-4.5” Lift (# 03-01-33-400-253)
• 5-6” Lift (# 03-01-33-400-406)
