TeraFlex TJ: Trail-Rate ST Front Sway Bar Kit (0-3” Lift)
TJ, LJ 2 Door 0", 1", 2", 3" Front
1743600
The TeraFlex JL / JT: HD Forged Adjustable Front Track Bar is recommended for 2.5-6” lifts. Bolts into factory locations – no cutting or welding required. This is the same Front Track Bar used in our 2.5-4.5” Alpine RT and Alpine CT Suspension Systems.
The front axle experiences tremendous amounts of lateral force while turning and those effects increase exponentially during off-road driving. Our adjustable HD Forged Adjustable Front Track Bar withstands these abusive side loads to dramatically improve steering response and handling. Track Bars also allow lateral adjustment of the axle for proper axle alignment as well as cycling through full suspension travel without interfering with other components.
A must for anyone who takes their rig off road!
The front axle experiences tremendous amounts of lateral force while turning and those effects increase exponentially during off-road driving. Our adjustable HD Forged Adjustable Front Track Bar withstands these abusive side loads to dramatically improve steering response and handling. Track Bars also allow lateral adjustment of the axle for proper axle alignment as well as cycling through full suspension travel without interfering with other components.
A must for anyone who takes their rig off road!
Pricing:
$541.99
Description
The TeraFlex Trail-Rate ST (Street & Trail) Front Sway Bar System is the off-road version of our Dual-Rate ST Sway Bar System (# 1753720).
The “Trail” sway bar provides trail-tuned torsion resistance for off-road driving to control body sway and lean during side hill and off-camber situations with full off-road articulation.
The forged sway bar arms feature several link mounting points to fine tune the torsion rate.
The Trail-Rate ST Front Sway Bar Kit is s a constant use sway bar and does not have any disconnect or release features.
Fits:
• TJ Wrangler (short wheelbase)
• LJ Wrangler Unlimited (long wheelbase)
• 0-3” Lift

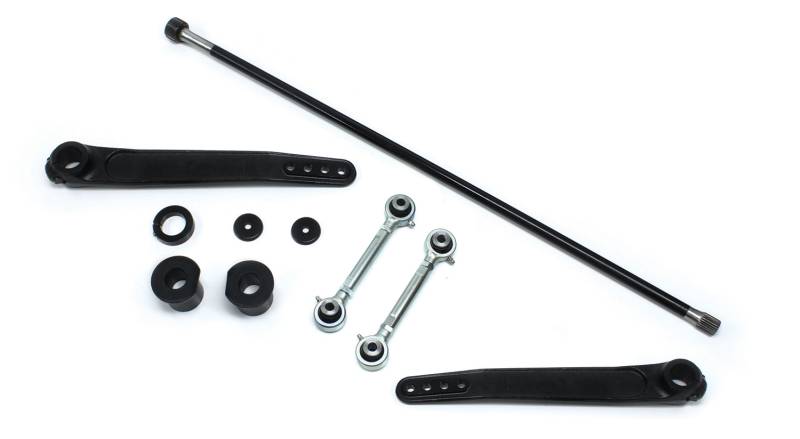

Includes:
• “Trail” Front Sway Bar
• Sway Bar Frame Brackets – pair
• Forged Sway Bar Arms – pair
• Sway Bar Quick Disconnects – pair
• Sway Bar Bushings
• All necessary hardware
• And more
Features: & Benefits:
HD Street-Tuned External Sway Bar
• Provides more resistance than factory sway bar for superior highway handling and control
• 35-spline/heat-treated 4130 chromoly
Trail-Tuned Internal Sway Bar
• Provides the perfect amount of resistance and stability during side hill and off-camber to maintain vehicle control
• 22-spline/heat-treated 4340 chromoly steel
Internal Bushing Eliminates Wear
• Internal bushing allows both sway bars to rotate independently in trail setting
• Eliminates play to maintain tight working tolerances
Forged High-Clearance Arm
• Allows maximum wheel travel during articulation, eliminates tire/sway bar interference, and increases overall strength – especially side loading
Easy Engagement Knob
• Ergonomically designed knob
• Go quickly from street to trail and back
• Twist clockwise for trail use and counterclockwise for street use
Note(s):
• REQUIRES aftermarket wheels w/ 4.5” backspacing or less – or Offset Wheel Adapters (# 1005200) for stock wheels.
Install Time: 5 Hours
Configurations:
Front:
• Dual-Rate 0-3” Lift (# 1743620)
• Dual-Rate 4-6” Lift (# 1743625)
• Single-Rate 0-3” Lift (# 1743610)
• Single-Rate 4-6” Lift (# 1743615)
• Trail-Rate 0-3” Lift (# 1743600)
• Trail-Rate 4-6” Lift (# 1743605)
Rear:
• Trail-Rate 0-3” Lift (# 1744600)
• Trail-Rate 4-6” Lift (# 1744605)
The “Trail” sway bar provides trail-tuned torsion resistance for off-road driving to control body sway and lean during side hill and off-camber situations with full off-road articulation.
The forged sway bar arms feature several link mounting points to fine tune the torsion rate.
The Trail-Rate ST Front Sway Bar Kit is s a constant use sway bar and does not have any disconnect or release features.
Fits:
• TJ Wrangler (short wheelbase)
• LJ Wrangler Unlimited (long wheelbase)
• 0-3” Lift
Includes:
• “Trail” Front Sway Bar
• Sway Bar Frame Brackets – pair
• Forged Sway Bar Arms – pair
• Sway Bar Quick Disconnects – pair
• Sway Bar Bushings
• All necessary hardware
• And more
Features: & Benefits:
HD Street-Tuned External Sway Bar
• Provides more resistance than factory sway bar for superior highway handling and control
• 35-spline/heat-treated 4130 chromoly
Trail-Tuned Internal Sway Bar
• Provides the perfect amount of resistance and stability during side hill and off-camber to maintain vehicle control
• 22-spline/heat-treated 4340 chromoly steel
Internal Bushing Eliminates Wear
• Internal bushing allows both sway bars to rotate independently in trail setting
• Eliminates play to maintain tight working tolerances
Forged High-Clearance Arm
• Allows maximum wheel travel during articulation, eliminates tire/sway bar interference, and increases overall strength – especially side loading
Easy Engagement Knob
• Ergonomically designed knob
• Go quickly from street to trail and back
• Twist clockwise for trail use and counterclockwise for street use
Note(s):
• REQUIRES aftermarket wheels w/ 4.5” backspacing or less – or Offset Wheel Adapters (# 1005200) for stock wheels.
Install Time: 5 Hours
Configurations:
Front:
• Dual-Rate 0-3” Lift (# 1743620)
• Dual-Rate 4-6” Lift (# 1743625)
• Single-Rate 0-3” Lift (# 1743610)
• Single-Rate 4-6” Lift (# 1743615)
• Trail-Rate 0-3” Lift (# 1743600)
• Trail-Rate 4-6” Lift (# 1743605)
Rear:
• Trail-Rate 0-3” Lift (# 1744600)
• Trail-Rate 4-6” Lift (# 1744605)
