TeraFlex JT: Alpine IR Short Control Arms Kit – Rear Lower (0-4.5” Lift)
JT 4 Door Rear Lower
1417590
Designed specifically for the JL Wrangler/Unlimited, TeraFlex 9550 VSS (Vehicle Specific Shocks) Twin-Tube Shocks are engineered, valved, and tuned for extreme off-road performance while retaining a smooth highway ride. Additionally, a proprietary inhouse velocity valve is tuned to react in sync with TeraFlex suspension systems and lift kits making them the perfect upgrade for your lifted Jeep.
The twin-tube design, oversized external tube with e-dipped finish, triple-chrome plated rod with oil block and seal, internal travel stop limiter, premium quality rubber bushings, and Jeep specific mounting contributes to the 9550 VSS Twin-Tube Shock’s performance, durability, and comfort.
The twin-tube design, oversized external tube with e-dipped finish, triple-chrome plated rod with oil block and seal, internal travel stop limiter, premium quality rubber bushings, and Jeep specific mounting contributes to the 9550 VSS Twin-Tube Shock’s performance, durability, and comfort.
Pricing:
$545.99
Description

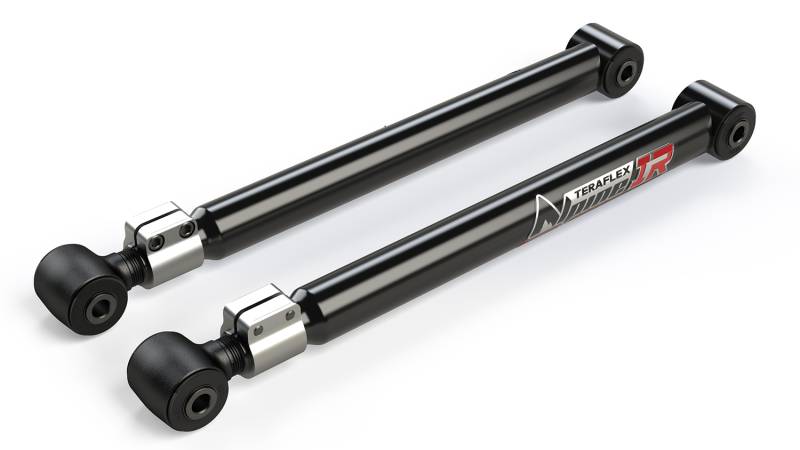

TeraFlex JT: Alpine IR Short Control Arms provide complete alignment adjustability and dependability for maximum performance on JT Gladiator models with 0-4.5” lifts. Bolts to the factory control arm mounting brackets. Can be added to any existing suspension lift.
Our innovative IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping. These maintenance-free bushings improve on- and off-road ride quality and performance.
FEATURES/BENEFITS
JL / JT Alpine IR Short Control Arms:
• Adjustable Alpine IR Short Control Arms balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 2-4” lift kits
• Alpine IR Short Control Arms are constructed from durable 42mm x 4mm wall DOM tube for maximum strength
• Bolts to the factory control arm mounting brackets
• Install and drive simple bolt-on installation – no welding required
JL / JT Alpine IR Control Arms (all):
• Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
• Full range of movement will not restrict articulation or flex off-road
• Innovative IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping
• Maintenance-free IR Bushings improve on- and off-road ride quality and performance
• Zero maintenance forged threaded joints for smooth quiet flex
• Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance
• Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
• TeraFlex Lifetime Warranty against defects
INCLUDES
Alpine IR Short Control Arm – Adjustable:
• Rear Lower Left (# XXXXXXX)
• Rear Lower Right (# XXXXXXX)
VEHICLE FITMENT INFO
Fits:
• JT Gladiator (pickup)
• 0-4.5” Lift
Control Arm Specs:
• Tube Diameter & Wall = 42mm x 4mm
• Factory Length = 23-3/4”
• Min. Length = 23-1/2”
• Max. Length = 24-3/4”
• Both Ends = 16mm Bolt
PRODUCT NOTES
• Alignment REQUIRED.
RELATED ITEMS
Alpine IR Short Control Arm Configurations:
• 8-Arm Kit (# 1417500)
• Front Upper (# 1416530) – pair
• Front Lower (# 1416550) – pair
• Rear Upper (# 1417580) – pair
• Rear Lower (# 1417590) – pair
INSTALL TIME
2 Hours
Our innovative IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping. These maintenance-free bushings improve on- and off-road ride quality and performance.
FEATURES/BENEFITS
JL / JT Alpine IR Short Control Arms:
• Adjustable Alpine IR Short Control Arms balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 2-4” lift kits
• Alpine IR Short Control Arms are constructed from durable 42mm x 4mm wall DOM tube for maximum strength
• Bolts to the factory control arm mounting brackets
• Install and drive simple bolt-on installation – no welding required
JL / JT Alpine IR Control Arms (all):
• Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
• Full range of movement will not restrict articulation or flex off-road
• Innovative IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping
• Maintenance-free IR Bushings improve on- and off-road ride quality and performance
• Zero maintenance forged threaded joints for smooth quiet flex
• Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance
• Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
• TeraFlex Lifetime Warranty against defects
INCLUDES
Alpine IR Short Control Arm – Adjustable:
• Rear Lower Left (# XXXXXXX)
• Rear Lower Right (# XXXXXXX)
VEHICLE FITMENT INFO
Fits:
• JT Gladiator (pickup)
• 0-4.5” Lift
Control Arm Specs:
• Tube Diameter & Wall = 42mm x 4mm
• Factory Length = 23-3/4”
• Min. Length = 23-1/2”
• Max. Length = 24-3/4”
• Both Ends = 16mm Bolt
PRODUCT NOTES
• Alignment REQUIRED.
RELATED ITEMS
Alpine IR Short Control Arm Configurations:
• 8-Arm Kit (# 1417500)
• Front Upper (# 1416530) – pair
• Front Lower (# 1416550) – pair
• Rear Upper (# 1417580) – pair
• Rear Lower (# 1417590) – pair
INSTALL TIME
2 Hours
Product Series
Details
Shipping Information
- Item Requires Shipping
- 19.0 lbs.
- W7.0000” x H3.0000” x L27.0000”
