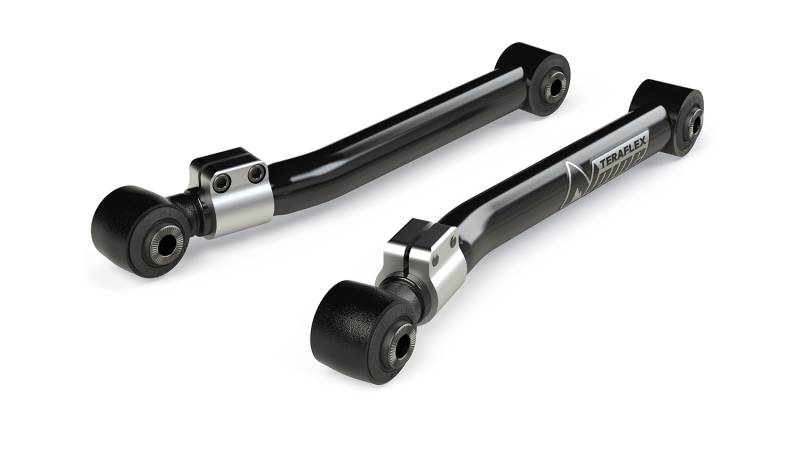

TeraFlex JL: Alpine Short Control Arms Kit – Rear Upper (0-4.5” Lift)

TeraFlex JL: Alpine Short Control Arms provide complete alignment adjustability and dependability for maximum performance on JL Wrangler/Unlimited models with 0-4.5” lifts. Bolts to the factory control arm mounting brackets. Can be added to any existing suspension lift.

High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH damping and ride quality.




Fits:


• JL Wrangler (2-door)

• JL Wrangler Unlimited (4-door)



• 0-4.5” Lift





Short Control Arm Specs:


• Tube Diameter & Wall = 42mm x 4mm

• Factory Length = 17.425”

• Min. Length = 17-3/8”

• Max. Length = 18-1/2”

• Both Ends = 14mm Bolt





Includes:


Alpine Short Control Arms:

• Driver Rear Upper (# 1141661)

• Passenger Rear Upper (# 1141662)




Features & Benefits:


JL Alpine Short Control Arms:


• Adjustable Alpine Short Control Arms balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 0-4.5” lift kits

• Alpine Short Control Arms are constructed from durable 42mm x 4mm wall DOM tube for maximum strength

• Bolts to the factory control arm mounting brackets



JL Alpine Control Arms (all):


• Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase

• Full range of movement will not restrict articulation or flex off-road

• High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH (noise, vibration, and harshness) damping and ride quality

• Zero maintenance forged threaded joints for smooth quiet flex

• Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance

• Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment

• Install and drive simple bolt-on installation – no welding required

• TeraFlex Lifetime Warranty against defects





Note(s):


• Alignment required.





Install Time: 2 Hours





Alpine Short Control Arm Kits:


• 8-Arm (# 1416610)


• Front Upper (# 1416520)

• Front Lower (# 1416500)

• Rear Upper (# 1416560)


• Rear Lower (# 1416540)

• Replacement Bushing (Both Ends: # 611011)
