TeraFlex JL: Alpine IR Long Control Arms Kit – 8-Arms Adjustable (3-6” Lift) – Arms Only

TeraFlex JL: Alpine IR Long Control Arms and Alpine Long Arm Brackets (NOT INCLUDED) provide complete alignment adjustability and dependability for maximum performance on JL Wrangler/Unlimited models with 3–6” lifts. Can be added to any existing suspension lift.

Our innovative IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping. These maintenance-free bushings improve on- and off-road ride quality and performance.

Must be used with Alpine Long Arm Bracket Kit (JL 2-Door: 1958002 or JL 4-Door: # 1958000) – NOT INCLUDED.

FEATURES/BENEFITS

JL Alpine IR Long Control Arms:

• Adjustable Alpine IR Long Control Arms & Brackets balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 3–6” lift kits
• Alpine IR Long Control Arms are constructed from durable 42mm x 4mm (front upper) or 50mm x 5mm (front lower, rear upper, rear lower) wall DOM tube for maximum strength
• On higher lifts, Alpine Long Arm Brackets reposition frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during droop and shock load transferred through the Alpine IR Long Control Arms
• Bolt-on Alpine Long Arm Brackets are gusseted and reinforced for superior strength w/ reduce NVH compared to other long arm kits

JL Alpine IR Control Arms (all):

• Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
• Full range of movement will not restrict articulation or flex off-road
• Innovative IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping
• Maintenance-free IR Bushings improve on- and off-road ride quality and performance
• Zero maintenance forged threaded joints for smooth quiet flex
• Premium black e-dipped coating on tube and forged rod end housing provides superior durability and
• corrosion resistance
• Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
• Install and drive simple bolt-on installation — no welding required
• TeraFlex Lifetime Warranty against defects

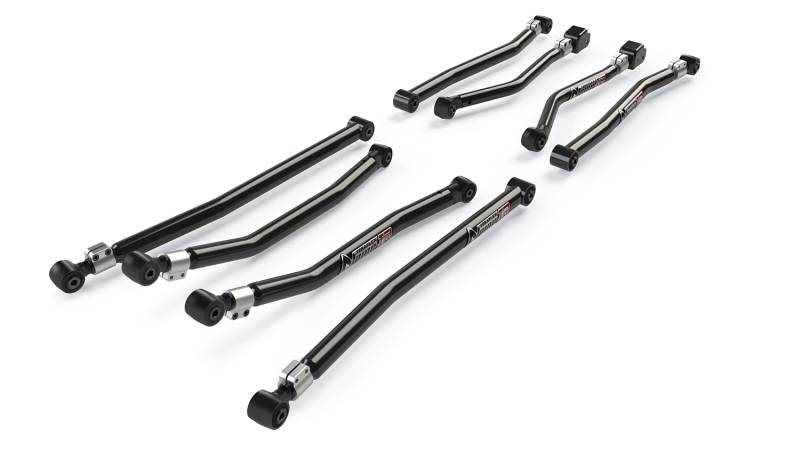

INCLUDES

Alpine IR Long Control Arm – Adjustable:
• Front Upper (# 1310520) – pair
• Front Lower (# 1310500) – pair
• Rear Upper (# 1310560) – pair
• Rear Lower (# 1310540) – pair

VEHICLE FITMENT INFO

Fits:

• JL Wrangler (2-door)
• JL Wrangler Unlimited (4-door)

• 3-6” Lift

Control Arm Specs:

JL: Alpine IR Long Control Arm Kit – Front Upper (# 1310520):

• Tube Diameter & Wall = 42mm x 4mm
• Factory Length = 20.185”
• Min. Length = 27-3/8”
• Max. Length = 28-7/8”
• Axle End = 7/16” (12mm) Bolt
• Frame End = 9/16” (14mm) Bolt

JL: Alpine IR Long Control Arm Kit – Front Lower (# 1310500):

• Tube Diameter & Wall = 50mm x 5mm
• Factory Length = 24”
• Min. Length = 33-3/4”
• Max. Length = 35-1/4”
• Both Ends = 9/16” (14mm) Bolt

JL: Alpine IR Long Control Arm Kit – Rear Upper (# 1310560):

• Tube Diameter & Wall = 42mm x 4mm
• Factory Length = 17.425”
• Min. Length = 20”
• Max. Length = 21-1/2”
• Both Ends = 9/16” (14mm) Bolt

JL: Alpine IR Long Control Arm Kit – Rear Lower (# 1310540):

• Tube Diameter & Wall = 50mm x 5mm
• Factory Length = 19-3/4”
• Min. Length = 35-3/4”
• Max. Length = 37-1/4”
• Both Ends = 9/16” (14mm) Bolt

PRODUCT NOTES

• Requires cutting/removal of factory control arm bracketry to install Alpine Long Arm Brackets.
• Alpine IR Long Control Arms and Alpine Long Control Arms MUST be used w/ Alpine Long Arm Bracket Kit (JL 2-Door: 1958002 or JL 4-Door: # 1958000) – NOT INCLUDED.

RELATED PARTS

Configurations:

JL:

Alpine IR Long Control Arm Kit – 8-Arm (# 1310505):
• Front Upper (# 1310520) – pair
• Front Lower (# 1310500) – pair
• Rear Upper (# 1310560) – pair
• Rear Lower (# 1310540) – pair

Alpine Long Control Arm Kit – 8-Arm (# 1316005):
• Front Upper (# 1316520) – pair
• Front Lower (# 1316500) – pair
• Rear Upper (# 1316560) – pair
• Rear Lower (# 1316540) – pair

JL 2-Door:

• Alpine IR Long Control Arm & Bracket Kit – 8-Arm (# 1310512)
• Alpine Long Control Arm & Bracket Kit – 8-Arm (# 1316012)
• Alpine Long Arm Bracket Kit – Brackets Only (# 1958002)

JL 4-Door:

• Alpine IR Long Control Arm & Bracket Kit – 8-Arm (# 1310510)
• Alpine Long Control Arm & Bracket Kit – 8-Arm (# 1316010)
• Alpine Long Arm Bracket Kit – Brackets Only (# 1958000)
