TeraFlex JK 2dr: 4” Alpine CT4 Long Arm Suspension System – No Shocks

TeraFlex Alpine CT (Cross-Trail) Suspension Systems build on our Sport ST (Street & Trail) Suspension Systems.



The TeraFlex 4” Alpine CT4 Long Arm Suspension System is developed for the off-roader craving trails and rocks as well as highway control in a no-compromise package.
The Alpine CT4 features our adjustable Alpine Long Control Arms & Brackets as well as HD Adjustable Front and Rear Track Bars for full suspension adjustability no matter the terrain!



Our adjustable Alpine Long Control Arms balance front caster angle and pinion angles as well as optimize rear pinion angles, anti-squat geometry, and tire position on vehicles with 3-6” lifts. On higher lifts,
Alpine Long Arm Brackets reposition frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during extreme droop as well as shock load transferred through the Alpine Long Control Arms.



The HD Forged Adjustable Front and Rear (4”+) Track Bars and Rear Track Bar Bracket improve steering response, center the axles to optimize vehicle roll center, and reduce body roll to for unsurpassed handling.

This results in improved suspension geometry and relaxed control arm angles for a superior ride quality and performance regardless of terrain.
These systems restore front and rear roll axis angles to minimize brake dive and acceleration squat.
TeraFlex suspension systems provide reduced noise, vibration, and harshness (NVH).



Alpine CT Suspension Systems are engineered for hardcore Jeeping without sacrificing weekday ride comfort!



We recommend Falcon Performance Shocks.

Falcon shock absorbers and TeraFlex lift coil springs have been engineered together to improve both compression and rebound for optimal vehicle stability.
Alpine CT Suspension Systems are offered with Falcon Series 3.3 Fast Adjust Piggyback Shocks or without shock absorbers.


Other Falcon shocks are available separately.




Specs:


• JK Wrangler (2-Door)


• Lift Height: 4”

• Max Tire Diameter: 37”

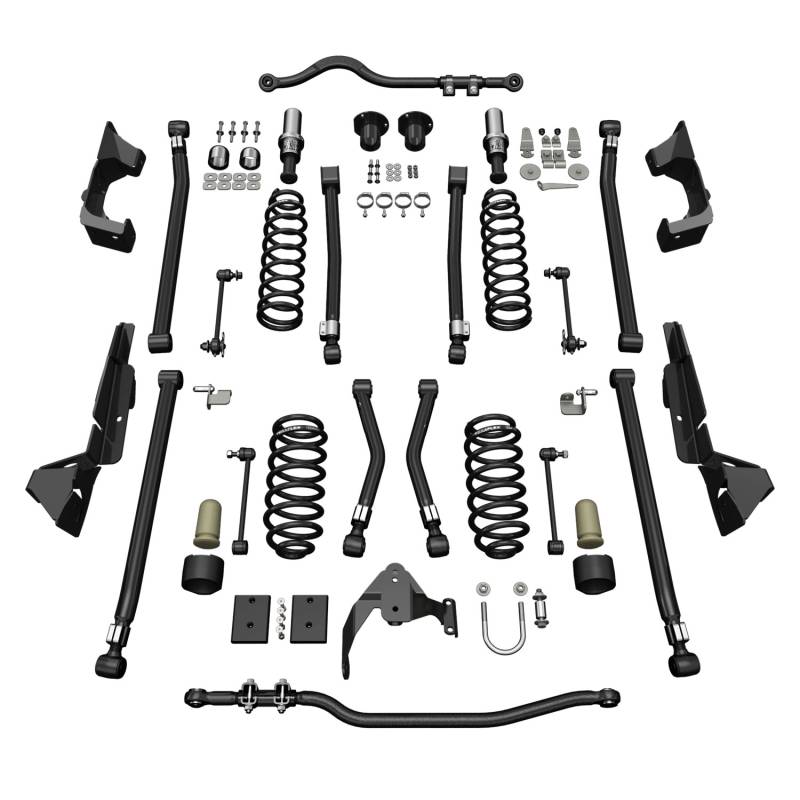

Includes:


• 4” Lift Coil Springs (JK2 Front: # 1853202 & JK2 Rear: # 1854202)

• 0.5"" Lift Coil Spring Spacers (Front x 2: 1953100 & Rear x 2: # 1954105)

• Alpine Long Control Arm & Bracket Kit – 8-Arm (3-6” Lift) (# 1315010)

• HD Forged Adjustable Front Track Bar (0-6” Lift) (# 1753418)

• HD Forged Adjustable Rear Track Bar (0-6” Lift) (# 1754418)

• Front Track Bar Bracket Gusset (# 4951800)

• Rear Track Bar Axle Bracket Kit (3-6” Lift) (# 1954777)

• Speedbump & Progressive Bump Stop Kit – Front & Rear (# 1958250)

• 1.25” SpeedBump Bump Stop Pad Kit – Front Lower (# 1467125)

• 0.75” SpeedBump Bump Stop Strike Pad Kit – Rear Lower (x 3: # 1954600)

• 10” Front Sway Bar Quick Disconnect Kit (3-4” Lift) (# 1753000)

• 12.25” Rear Sway Bar Link Kit (3-4” Lift) (# 1754500)

• 26” Front Brake Line Kit – Stainless Steel Braided (# 4353310)

• 30” Rear Brake Line Kit – Stainless Steel Braided (# 4350310)

• Front Brake Line Anchor Kit (# 1101255)

• Exhaust Spacer Kit (# 2610000)

• All necessary hardware

• And more





Features & Benefits:


Alpine CT4:


• Lift Height: 4”

• Max Tire Diameter: 37”



CT Long Arm Suspension Systems:


• Adjustable Alpine Long Control Arms & Brackets balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 3-6” lift kits

• Alpine Long Control Arms are constructed from durable 42mm x 4mm (upper) or 50mm x 5mm (lower) wall DOM tube for maximum strength

• On higher lifts, Alpine Long Arm Brackets reposition frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during extreme droop as well as shock load transferred through the Alpine Long Control Arms

• Alpine Long Arm Brackets are gusseted and reinforced for superior strength w/ reduce NVH compared to other long arm kits



Cross-Trail:


• Delivers true Cross-Trail (CT) performance

• Dependable performance w/ zero worries

• Positive, responsive handling w/ reduced NVH

• High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH damping and ride quality.

• HD Forged Adjustable Front and Rear (4”+) Track Bars and Rear Track Bar Bracket improve steering response, center axles to optimize vehicle roll center, and reduce body roll for unsurpassed handling

• Front SpeedBump and rear Progressive Bump Stops provide progressive compression during high-speed suspension movement

• Coil spring retainers prevent the springs from unseating during full suspension travel

• Full range of movement for off-road flex and articulation

• TeraFlex Limited Lifetime Warranty against defects




Note(s):


• Requires aftermarket wheels w/ 4.75” backspacing or less – or Offset Wheel Adapters (# 1055000) for stock wheels – NOT INCLUDED.

• We highly recommend driveshaft modifications such as our High-Angle Rzeppa CV Driveshafts or our High-Angle Rzeppa CV Joint Kit (# 1744014).

• Requires cutting/removal of factory control arm bracketry to install Alpine Long Arm Brackets.

• Requires cutting and welding.

• Alignment required.

• Requires longer shocks (NOT INCLUDED in base kit) – Falcon Performance Shocks recommended.





Install Time: 20 Hours





Alpine CT4 Long Arm Configurations:


JK 2-Door:


• w/ Falcon 3.3 Fast Adjust Piggyback Shocks (# 1224033)

• No Shocks (# 1224000)



JK 4-Door:


• w/ Falcon 3.3 Fast Adjust Piggyback Shocks (# 1324033)

• No Shocks (# 1324000)
