Fabtech K3184DL Radius Arm Lift System

5" RADIUS ARM KIT W/ 4.0 C/O RESI DLSS AND RR 2.25 DLSS 2019-20 RAM 2500 4WD

K3184DL

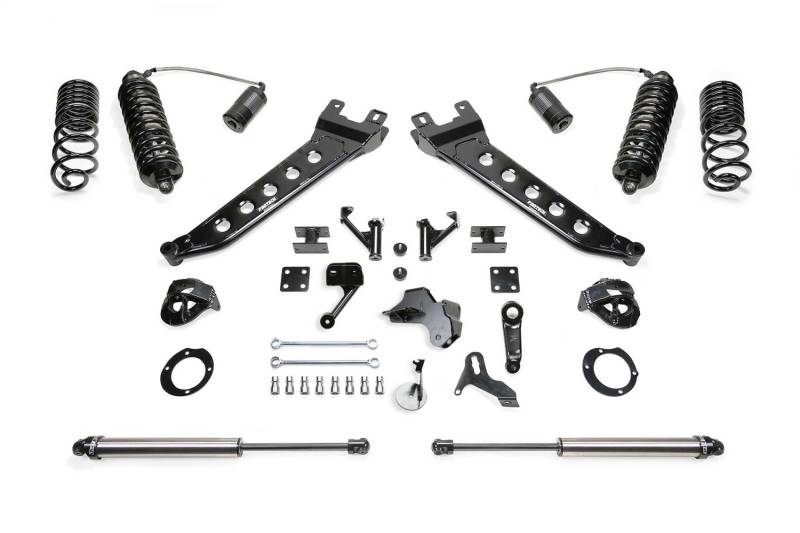

Improving on the Ram suspension design, Fabtech offers their trademark Radius Arms in a complete lift kit. These exclusive tubular Radius Arms have recognizable dimple die side plates for superior strength and a signature of quality. The rugged Arms provide increased caster for use with oversized tires and lifted suspension heights. For maximum suspension damping, this Ram lift kit features the massive stainless steel Dirt Logic 4.0 Coilovers. These top shelf Coilovers bolt to the factory upper coil bucket with support gussets for superior strength. The lower mounts weld to the axle housing and have cross support gussets for the factory Track Bar bracket. Heavy duty 1/4 in. thick steel front and rear Track Bar drop brackets center the axles under the vehicle with the new ride height. For the rear, this lift kit has the perfect balance between ride quality and retaining the factory carrying capacity. By utilizing a dual rate spring design, it provides a good highway ride in the first stage of compression then the second stage handles heavy loads. This high end lift kit system is the ultimate suspension upgrade for Ram 2500.

  • Unsurpassed Strength And Performance
  • Patent Pending Radius Arms
  • Fully Tubular Structure
  • Dimple Die Side Plates
  • Adjustable Alignment Cam Allows Caster Adjustment

5 in. Lift - w/Dirt Logic SS 4.0 Coilover Resi - Rear 2.25 Dirt Logic SS

Shipping: This item is oversize for normal delivery and will incur an additional handling charge. Delivery to a commercial/business address is recommended.
Pricing: $5,785.83
Qty:

Description

Fabtech - Radius Arm Lift System P/N K3184DL Features:

  • Unsurpassed Strength And Performance
  • Patent Pending Radius Arms
  • Fully Tubular Structure
  • Dimple Die Side Plates
  • Adjustable Alignment Cam Allows Caster Adjustment

Product Series

Manufacturer

Established in 1989, Fabtech started as a small custom fabrication shop specializing in building suspensions for Prerunners and Race Trucks.

Fabtech has since grown into a world class manufacturer of Suspension Systems and accessories for the offroad enthusiast. Fabtech operates a 200,000 sq. ft facility in Chino, California performing all phases of R&D and Manufacturing in house.

Suspension designs are created internally and hand crafted by Fabtech's team of Race Shop fabricators and engineers for proper functionality and performance. State of the art CNC Lasers, Mills, Lathes and Welders construct each component for exceptional quality control and superior strength.

Unique designs, extensive testing and superior strength is why Fabtech builds the finest 2 & 4 Wheel Drive Suspension Systems on the market today.

Details

  • K3184DL
  • K3184DL
  • 674866108813
  • Fabtech
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 354.8 lbs.
  • W45.5000” x H35.2000” x L46.3000”
  • $149.00
  • This item will require a special quote for shipping charges.
  • This item is oversize for normal delivery and will incur an additional handling charge. Delivery to a commercial/business address is recommended.
