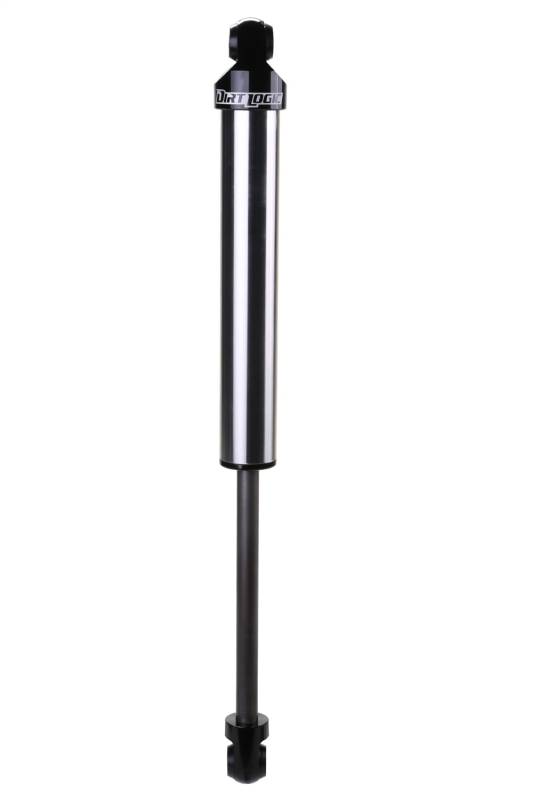

Fabtech FTS811482 Dirt Logic 2.25 Resi Rear Shock
2.25" Dirt Logic Stainless Steel Non-Reservior
Fabtech's Upper Control Arm system provides a 3.5 in. lift over stock with increased wheel travel and no suspension bind at full droop. Lift is accomplished with steel spacers that utilize the factory Coilover shocks for a stock ride. The replacement Upper Control Arms address the geometry of the front suspension with the new ride height for proper alignability. Heavy duty ball joints allow for extended suspension travel to eliminate binding. The system has been designed for proper CV axle angle and plunge thus eliminating the need to reposition the front differential. Rear lift comes from 1.5 in. blocks and u-bolts.This 3.5 in. Upper Control Arm system allows clearance of 31 in. tires without the removal or cutting of the factory Intrusion Beams located in the front fenderwell. The Intrusion Beams are an integral part of the front collision safety impact feature of the Ranger and limits tire clearance to a 31 in. tire with a 3.5 in. lift. For Ranger owners that want to run a 33 in. tire, Fabtech offers optional replacement Offset Intrusion Beams. They directly replace the factory units helping to retain the safety feature of the Beams while allowing clearance of 33 in. tires. These 1/4 in. thick steel Beams are offset to allow full steer with 33/12.50R tires w/ a 5 in. back space wheel.
- Front And Rear Lower 5 Ton Link Arms
- Front Link Arm Crossmember And Skid Plate
- Rear Lower Link Arm Mounts
- Front And Rear Corner Specific Dual Rate Coil Springs
- Front And Rear Bump Stop Extensions
- Front And Rear Sway Bar Links
- Front And Rear Brake Line Drops
- Front And Rear Track Bar Bracket
- Heavy Duty Flipped Draglink
- Front Shock Mount Brackets
- Front And Rear Dirt Logic 2.25 Resi Shocks
Description
Fabtech - Dirt Logic 2.25 Resi Rear Shock P/N FTS811482 Features:
- Front And Rear Lower 5 Ton Link Arms
- Front Link Arm Crossmember And Skid Plate
- Rear Lower Link Arm Mounts
- Front And Rear Corner Specific Dual Rate Coil Springs
- Front And Rear Bump Stop Extensions
- Front And Rear Sway Bar Links
- Front And Rear Brake Line Drops
- Front And Rear Track Bar Bracket
- Heavy Duty Flipped Draglink
- Front Shock Mount Brackets
- Front And Rear Dirt Logic 2.25 Resi Shocks
Product Series
Manufacturer
Fabtech has since grown into a world class manufacturer of Suspension Systems and accessories for the offroad enthusiast. Fabtech operates a 200,000 sq. ft facility in Chino, California performing all phases of R&D and Manufacturing in house.
Suspension designs are created internally and hand crafted by Fabtech's team of Race Shop fabricators and engineers for proper functionality and performance. State of the art CNC Lasers, Mills, Lathes and Welders construct each component for exceptional quality control and superior strength.
Unique designs, extensive testing and superior strength is why Fabtech builds the finest 2 & 4 Wheel Drive Suspension Systems on the market today.
Details
Shipping Information
- Item Requires Shipping
- 12.0 lbs.
- W7.5000” x H4.5000” x L32.0000”
- Free Shipping!
