TeraFlex JLU 4-Door Sport/Sahara: 2.5” Performance Spacer Lift Kit w/ 9550 VSS Shocks

most economical way to fit larger tires and increase ground clearance on your JLU Wrangler Unlimited Sport or Sahara with the least amount of modifications.

Fits:

• JLU Wrangler Unlimited Sport (4-door)
• JLU Wrangler Unlimited Sahara (4-door)

Specs:

• Lift Height: 2.5”

Max Tire Diameter:

• Sport | Sahara (w/ 3” front & 2.5” rear bump stops): 35”

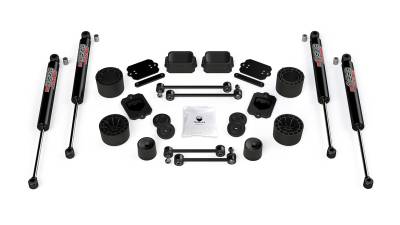

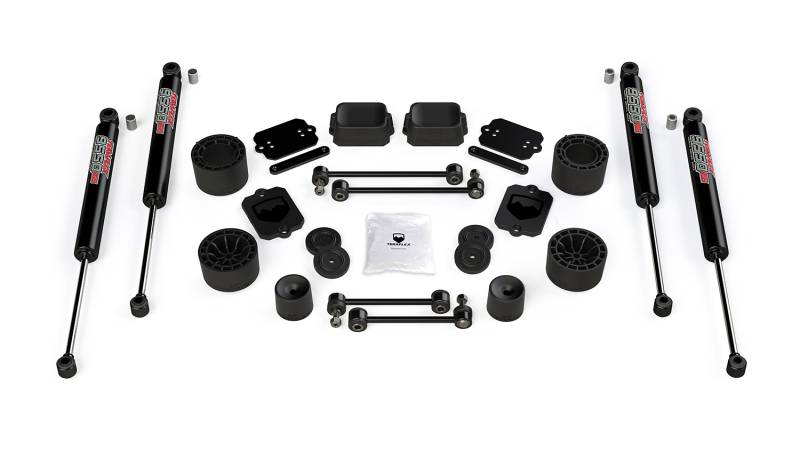

Includes:

• 3” lift front spring spacers
• 2.5” lift rear spring spacers
• 2” front & rear bump stop strike pad kit (# 1959500)
• 0.5” front bump stop strike pad shims - 4
• 0.5” rear bump stop strike pad shims - 2
• Longer front sway bar links (11.5”) - pair
• Longer rear sway bar links (10.75”) - pair (# 744500)
• TeraFlex 9550 VSS shocks – set of 4 (# 1545250)
• All necessary hardware

Note(s):

• Taller spacers in the front corrects the factory nose-down rake.
• Sport & Sahara models require aftermarket wheels w/ 4.5” backspacing or less – or Offset Wheel Adapters for stock wheels – NOT included.
• Models with plastic bumpers require removal of bumper-to-fender wind deflector/splash guards in order to fit 35” or larger tires.
• Sport/Sahara models require the INCLUDED 0.5” front & 0.5” rear bump stop strike pad shims in order to fit 35” tires.
• Rubicon models require JL/JLU Bump Stop Strike Pad Shim Kit (# 1959300) in order to fit 37” tires – NOT included.
• JL/JLU: Front Lower Sport Flexarms (# 1253000) or Front Control Arm Sport Brackets (# 1938125) recommended to optimize caster and pinion angles.
• Also available w/ shock extensions instead of shock absorbers (# 1365205) as well as w/out shock absorbers or shock extensions (# 1365200).

Install Time: 4 Hours
