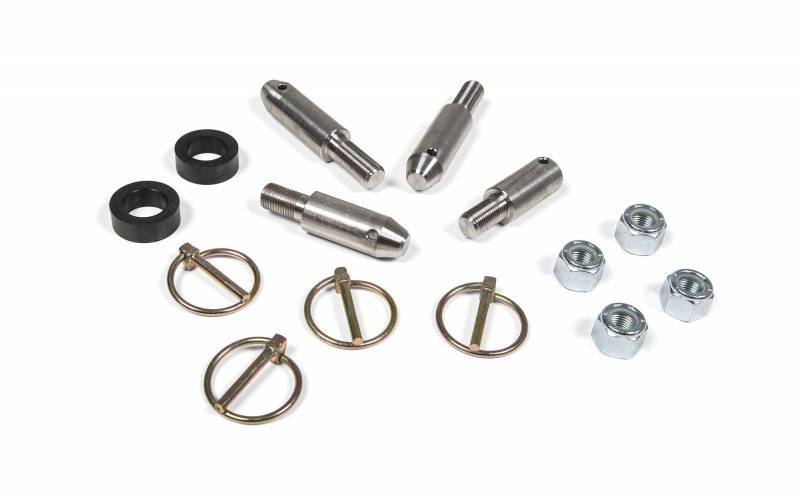

JKS JK Flex Connect Disconnect Upgrade Kit - JK Wrangler - 2007-2017

"The Flex Connect is a huge leap forward from a traditional sway bar link. With the specially turned PAC springs, the link is able to extend and compress, working with the factory sway bar to control body roll. The Flex Connect improves the way the stock bar absorbs imperfections in the road (or offroad surface) by soaking up ?head bobble? inducing bumps. The Flex Connect also improves the articulation of the JK suspension over the stock setup. The Flex Connect springs compress and extend under load, giving the same effect as if the sway bar was twisting further and allowing the suspension to articulate more.

For those looking to get the ultimate performance out of the Flex Connect link, the optional Performance Spring Kit allows for roll stiffness to be adjusted using one of the 3 unique replacement spring sets. These springs are tuned to work in different terrains or vehicle setups. The Performance Spring kit includes tools and instructions to swap out the pre-installed OE springs with any of the 3 optional spring sets. Choices can be made based on terrain or even how the Jeep is equipped for a particular trip. As the spring set rates get softer they have more travel, increasing the suspensions ability to articulate. Below, each spring spec and function is detailed. This is a guide to get started adjusting the roll stiffness of the Flex Connect system.

Flex Connect Kit Base Spring
OE Spring (Pre-installed in the Flex Connect)
- Effective spring rate is 35% softer than factory, 1.1? total link travel
- Closest spring to a stock fixed length sway bar link. Maintains road manners while still giving the benefit of absorbing the ?head-bobble? type bumps
- Changes your stock sway bar system into a dual rate system.

Performance Spring Kit Includes (Available Seperately) PN 2100
Red Spring (Road)
- Effective spring rate is 45% softer than factory, 1.3? total link travel
- High Rate/Low Travel
- For those looking to maintain on road manners but gain a little more Flex Connect travel and forgiveness over the preinstalled OE spring. Also a great choice to higher speed offroad situations
Yellow Spring (Trail)
- Effective spring rate is 60% softer than factory, 1.6? total link travel
- Mid Rate/Mid Travel
- For those looking to venture off the trail for mild offroading at moderate speeds
Blue Spring (Crawl)
- Effective spring rate is 75% softer than factory, 2.3? total link travel
- Low Rate/High Travel
- For playing in the rocks and off-camber situation. Gives more suspension articulation then a stand link/sway bar setup while maintaining the stability of the sway bar.

Check out Driving Line"" Article - JKS Flex Connect: Not Your Average Sway Bar Disconnect
"
