TeraFlex Wrangler JK 2 Door 3" Outback Suspension System

1167202 Contents:

1234202 JK 3" Outback Spring Base Kit / 2 Door
1415610 JK Alpine All 8 HD Adjustable Control Arm Kit
1753418 JK Front Forged Monster Trackbar Kit
1958250 JK Front/Rear 3"-3.5" Lift 3" Travel SpeedBump Kit w/ Bumpstops, Spacers, Rear Microcellular

Legendary tracks such as the Canning Stock Route in Australia, or the Silk Road in China prove to be some of the toughest challenges a vehicle will ever face. The FlexArm joints use factory style rubber bushings at both ends of the flexarm. This delivers maximum vibration damping. The allowable flex provided by rubber bushings provides full articulation, utilizing maximum shock travel available. Special consideration and attention was spent on correct spring rate tuning and development.

This system incorporates custom load-enhanced heavy-duty spring rate coils to meet the performance demands of a fully loaded Jeep and maintain the lift height. Critical gusseting, bracing and other bracketry to beef up areas that are prone to damage and fatigue typically experienced with extended overland trips.

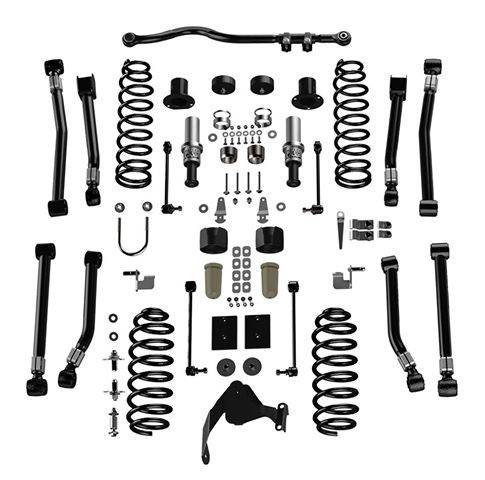

This system includes 3" lift load-enhanced coil springs, 4 lower and 2 rear upper adjustable FlexArms, front swaybar disconnects, rear swaybar links, rear trackbar bracket, SpeedBump bumpstops, front limit straps, and all necessary hardware. This kit will allow you to run up to a 35" tire (aftermarket wheels with 4.5" backspacing or less are required). Fits all JK Wrangler models including Rubicon. Note: Driveshaft modifications are recommended with this suspension system. 2012+ JKs require exhaust spacers (#2610000) or other exhaust modification for proper driveshaft clearance. Because of the load enhanced spring rate, this kit is designed specifically for "heavy loaded" Jeeps. A firmer ride will be experienced with an empty payload.
