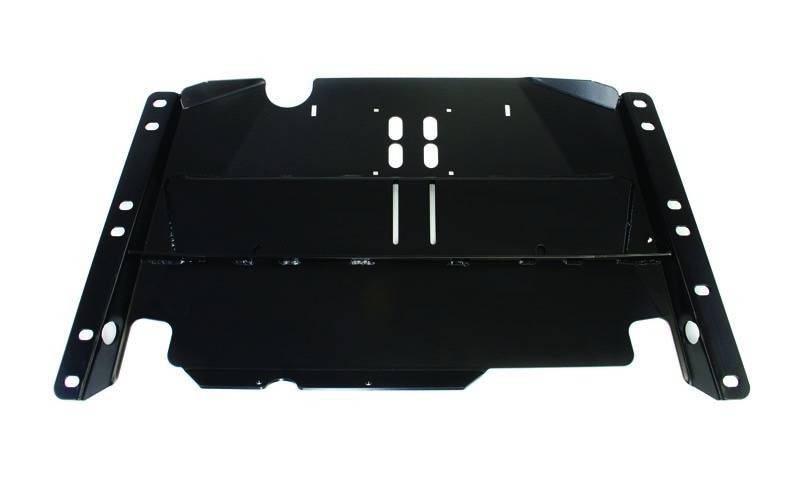

TeraFlex TJ Belly Up Skid Plate Kit
4648403
The TeraFlex TJ BellyUp increases your ground clearance by up to 2-3/8" by replacing the factory skid plate with a lower-profile 1/4" plate steel heavy duty skid plate. A 1" body lift is recommended with Rubicon applications for proper transfer case clearance. Some exhaust adjustment may be necessary. Fits all TJ Wrangler models including the Rubicon and Unlimited. Note: This kit requires some fine tuning and adjustment to eliminate driveshaft vibration. Short shaft kit: This kit will require the use of a short shaft kit (Part # 4444400, or # 4444401). Lowering kit: Because the BellyUp can make driveshaft angles severe, a lowering kit (Part # 1900100 for a 1" drop or Part #1900000 for 1/2" drop) will decrease the severity of that angle. This issue is common when the BellyUp is combined with a 4" suspension system.
Pricing:
$600.99
Description
The TeraFlex TJ gas tank skid plate lowering kit is needed when mounting the gas tank skid plate without a 1" body lift. This hardware kit properly mounts the skid plate to the factory gas tank for proper under vehicle clearance.
Product Series
Details
- 4648403
- 4648403
- Tera-Flex Suspension
- New
Product Series
Shipping Information
- Item Requires Shipping
- 80.0 lbs.
- W26.0000” x H4.0000” x L44.0000”
- Free Shipping!
