Firestone Ride-Rite 9227 Air Tank

SKU: 9227

This Firestone air tank provides a source of compressed air for an air spring system. Tank has 3-gallon capacity, (3) 1/4 in. NPT ports and (1) 1/8 port. Tank is enamel coated, tested to be SAE J10 compliant and capable of 150 psi. Features: Provides compressed air source for an air helper spring system Allows for faster inflation of air springs Holds 3 gallons of compressed air Includes (3) 1/4 in. and (1) 1/8 in. NPT ports Steel tank with brass fittings Resists corrosion with internal and external enamel coating Is SAE J10 compliant Operates at up to 150 psi of maximum pressure Specs: Tank dimensions: 20.75 in. long x 7 in. diameter Tank capacity: 3 gallons Inflation ports: 1/4 in. and 1/8 in. NPT PSI: Maximum of 150 2-Year limited warranty

Manufactured To SAE J10 Specifications
Pressure Tested To Twice The Working Pressure
Baked Black Enamel On Inside And Outside
Prevents Corrosion

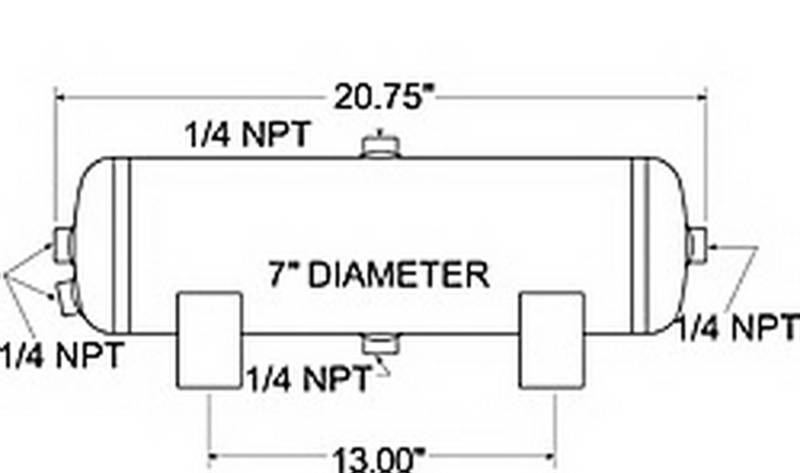

3 Gallon - 7 in. Dia. - 20.75 in. Length - Four 1/4 in. NPT Ports - One 1/8 in. NPT Port - 150 PSI Max - Black

Was: $134.49

Sale: $102.32

Save: 24%

Save: $32.17

Description
Manufacturer
Details
Shipping

Description

Firestone Ride-Rite - Air Tank P/N 9227 Features:

Manufactured To SAE J10 Specifications
Pressure Tested To Twice The Working Pressure
Baked Black Enamel On Inside And Outside
Prevents Corrosion

Product Series

Firestone Compressor Air Storage Tanks

Manufacturer

More than seventy years ago, Firestone started developing a full air-based suspension for passenger cars. Firestone Airide air springs were installed on the new line of general Motors buses in the late 50's. Later that decade, air springs began to gain popularity in luxury vehicles. Over the next 20 years, technology improvements in other suspension components, such as compressors and valves, helped support the growth of air suspension. In the 1970's, Ford Motor Company incorporated air suspension in the Lincoln Town Car and Continental. Firestone has continued to be innovative in product design, material selection and customer service, providing our customers with improved ride quality and safe load-carrying capabilities.
