Firestone Ride-Rite 9248 Air Tank

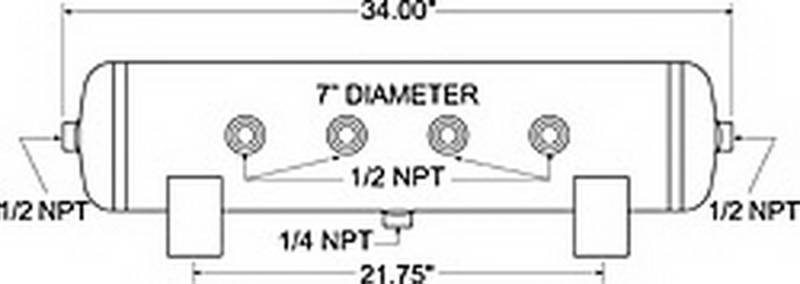

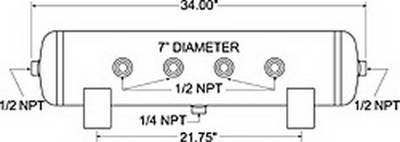

This Firestone air tank provides a source of compressed air for an air spring system. Tank has 5-gallon capacity, (6) 1/2 in. NPT ports and (1) 1/4 port. Tank is enamel coated, tested to be SAE J10 compliant and capable of 150 psi. Features: Provides compressed air source for an air helper spring system Allows for faster inflation of air springs Holds 5 gallons of compressed air Includes (6) 1/2 in. and (1) 1/4 NPT ports Steel tank with brass fittings Resists corrosion with internal and external enamel coating Is SAE J10 compliant Operates at up to 150 psi of maximum pressure Specs: Tank dimensions: 34 in. long x 7 in. diameter Tank capacity: 5 gallons Inflation ports: 1/2 in. and 1/4 in. NPT PSI: Maximum of 150 2-Year limited warranty

5 Gallon - 7 in. Dia. - 34 in. Length - Six 1/2 in. NPT Ports - One 1/4 in. NPT Port - 150 PSI Max - Black
