Firestone Ride-Rite 9242 Air Tank

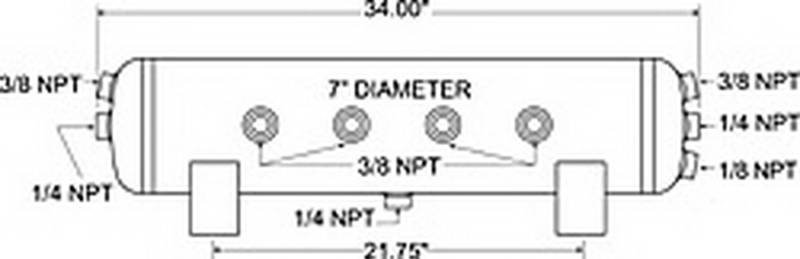

This Firestone air tank provides a source of compressed air for an air spring system. Tank has 5-gallon capacity, (6) 3/8 in. NPT ports, (3) 1/4 ports and (1) 1/8 port. Tank is enamel coated, tested to be SAE J10 compliant and capable of 150 psi. Features: Provides compressed air source for an air helper spring system Allows for faster inflation of air springs Holds 5 gallons of compressed air Includes (6) 3/8 in., (3) 1/4 in. and (1) 1/8 NPT ports Steel tank with brass fittings Resists corrosion with internal and external enamel coating Is SAE J10 compliant Operates at up to 150 psi of maximum pressure Specs: Tank dimensions: 34 in. long x 7 in. diameter Tank capacity: 5 gallons Inflation ports: 3/8 in., 1/4 in. and 1/8 in. NPT PSI: Maximum of 150 2-Year limited warranty
- Manufactured To SAE J10 Specifications
- Pressure Tested To Twice The Working Pressure
- Baked Black Enamel On Inside And Outside
- Prevents Corrosion
5 Gallon - 7 in. Dia. - 34 in. Length - Six 3/8 in. NPT Ports - Three 1/4 in. NPT Port - One 1/8 in. NPT Port - 150 PSI Max - Black
Description
Firestone Ride-Rite - Air Tank P/N 9242 Features:
- Manufactured To SAE J10 Specifications
- Pressure Tested To Twice The Working Pressure
- Baked Black Enamel On Inside And Outside
- Prevents Corrosion
Product Series
Manufacturer
Details
- 9242
- 9242
- 767555107935
- Firestone Ride-Rite
- New
Product Series
Shipping Information
- Item Requires Shipping
- 13.8 lbs.
- Free Shipping!
