Firestone Ride-Rite 9277 Air Tank

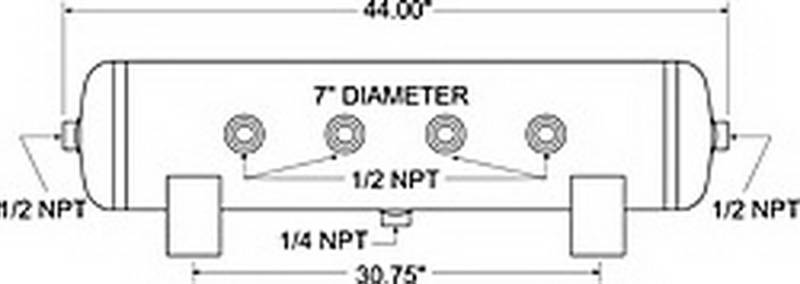

This Firestone air tank provides a source of compressed air for an air spring system. Tank has 20-gallon capacity, (6) 1/2 in. NPT ports and (1) 1/4 port. Tank is enamel coated, tested to be SAE J10 compliant and capable of 150 psi. Features: Provides compressed air source for an air helper spring system Allows for faster inflation of air springs Holds 20 gallons of compressed air. Includes (6) 1/2 in., and (1) 1/4 NPT ports. Steel tank with brass fittings. Resists corrosion with internal and external enamel coating. Is SAE J10 compliant. Operates at up to 150 psi of maximum pressure Specs: Tank dimensions: 44 in. long x 12 in. diameter. Tank capacity: 19 gallons. Inflation ports: 1/2 in. and 1/4 in. NPT. PSI: Maximum of 150. 2-Year limited warranty.

20 Gallon - 12 in. Dia. - 44 in. Length - Six 1/2 in. NPT Ports - 1/4 in. NPT Port - 150 PSI Max - Black
