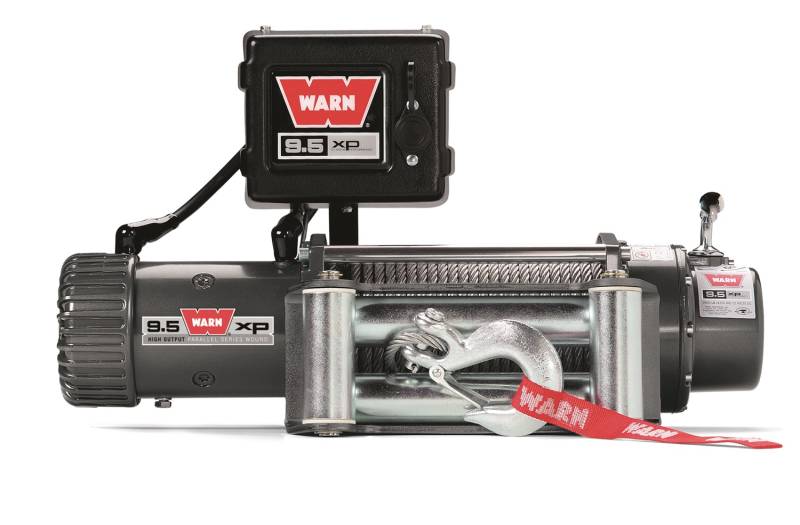

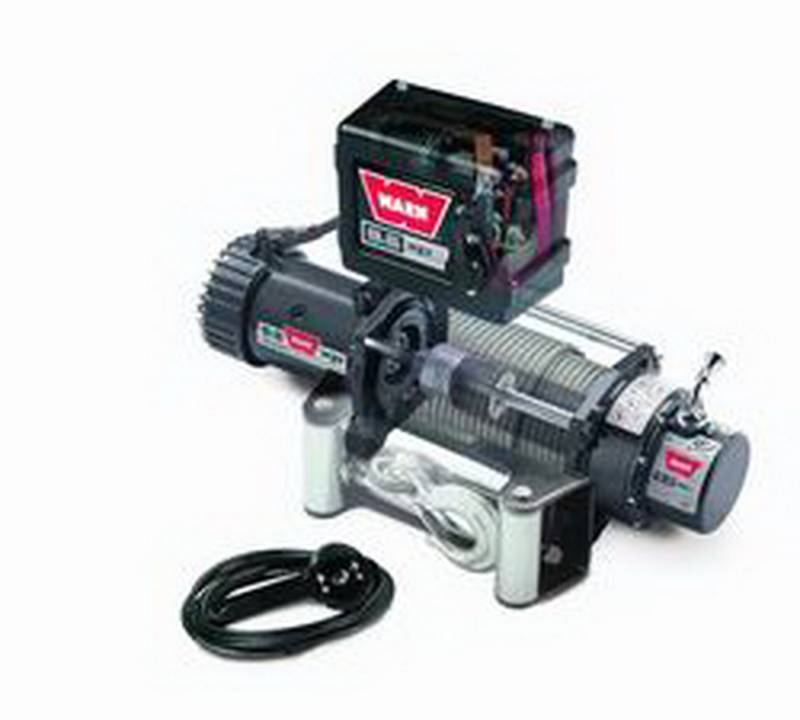

Warn 9.5 9,500 Lb. Self-Recovery Winch - 68500

Warn Winch - Winch 12 Volt 9500 LB - 100 Ft Wire Rope Roller Fairlead - Wired Remote

68500
WARN 9.5xp
Fast, powerful and reliable - for extreme conditions


The fast, powerful 9.5xp Extreme Performance winch is designed for the serious off-roader who demands a winch that will perform under the most extreme conditions in the world. With 9,500 lbs. of pulling power and the fastest line speed of any WARN winch under load, the 9.5xp delivers extreme performance that eats up the competition-even in competition

High-output parallel series wound winch motor is the strongest and most durable in the industry
Extreme-duty winch sealing. Enables superior water resistance
Exclusive brake design. Provides superior operator control when winching
Extended-duty control pack delivers long duty cycle to help you tackle the most demanding pulls
3-Stage planetary geartrain. Proven to be the most reliable efficient and durable design
Remote-mount, next-generation control box allows for various mounting options
Remote control with 12' (3.7m) lead
High gloss, chip-resistant powder coat finish. Provides superior corrosion resistance
100' of steel winch rope
Pricing: $1,799.98
Qty:
Free Shipping!

Description

WARN 9.5xp
Fast, powerful and reliable - for extreme conditions

9.5XP SPECS/PART NUMBERS

Winch model: 9.5xp
Part Number: 68500 (wire rope, 12V)
Rated Line Pull: 9,500 lbs. (4310 kgs) single-line
Motor: 12V 6 hp (4.48kw), High output parallel series wound
Electrical controls: Contactor
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-stage planetary
Gear ratio: 156:1
Clutch (freespooling): Sliding ring gear
Brake: Automatic mechanical cone brake
Rope: Steel -- 100', 5/16" diameter (30m, 8mm diam.)
Fairlead: Roller fairlead
Recommended battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m)
Finish: High-gloss powder coat over primer undercoating
Drum diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight: 87 lbs. (39.5 kgs)

Product Series

Manufacturer

Warn Industries is the world's most recognized brand in off-road products. The company designs, manufactures and markets a full line of off-road equipment and accessories that enhance the performance of four-wheel-drive vehicles and ATVs. As well, the WARN Industrial and WARN Works (for utilitarian use) brands offer high-performance, quality products for today's hard worker.

Application List

Universal

Details

  • 68500
  • 68500
  • 012748685005
  • Warn
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 97.0 lbs.
  • W19.0000” x H8.0000” x L25.5000”
  • Free Shipping!
