Warn M8274-50 Classic 8,000 Lb. Self-Recovery Winch - 38631
Warn Winch - 12 Volt 9000 LB - 150 Ft Wire Rope - Roller Fairlead
38631

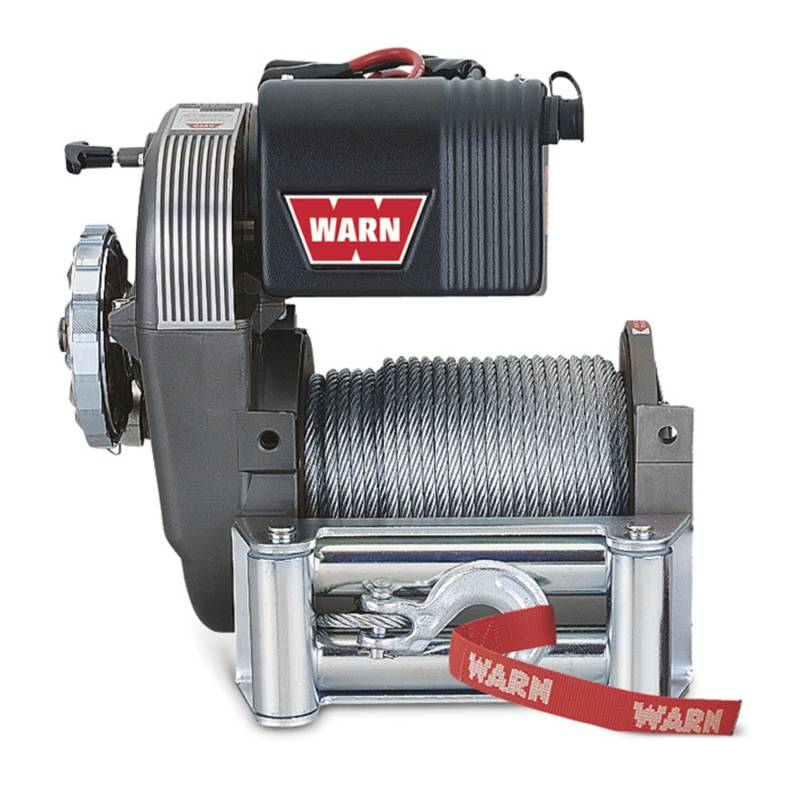

WARN M8274-50
Fastest line speed, longest wire rope, legendary performance
Loved by off-roaders who compete, it's our fastest winch. No-load retrieval speed for the M8274-50 is 79.3 feet per minute, and that's not all. At 150 ft. of 5/16" cable, it also has a very long line capacity. Its unique spur gear drivetrain and upright design are totally rugged. Its braking system delivers smooth operation with superior heat dissipation. Roller fairlead, remote control on 12-ft. lead, free spool clutch and battery cables are included.
Rugged spur-gear drive train and unique upright design
Automatic disc braking system delivers smooth operation with superior heat dissipation
Roller fairlead, remote control, free spool clutch, and battery cables are included.
Fastest line speed, longest wire rope, legendary performance
Loved by off-roaders who compete, it's our fastest winch. No-load retrieval speed for the M8274-50 is 79.3 feet per minute, and that's not all. At 150 ft. of 5/16" cable, it also has a very long line capacity. Its unique spur gear drivetrain and upright design are totally rugged. Its braking system delivers smooth operation with superior heat dissipation. Roller fairlead, remote control on 12-ft. lead, free spool clutch and battery cables are included.
Rugged spur-gear drive train and unique upright design
Automatic disc braking system delivers smooth operation with superior heat dissipation
Roller fairlead, remote control, free spool clutch, and battery cables are included.
Pricing:
$2,462.98
Description
WARN M8274-50
Fastest line speed, longest wire rope, legendary performance
M8274-50 SPECS/PART NUMBERS
Part number: 38631 (12V)
Winch model: M8274-50
Rated line pull: 8,000 lbs., (3628 kgs.) single-line
Motor: Series Wound, 12V 4.6 hp/3.43kw, 24V 2.5 hp/3.43kw
Electrical controls: Solenoid
Remote Control: Remote switch, 12' (3.7m) lead
Gear train: Spur Gear
Gear ratio: 134:1
Clutch (freespooling): Sliding Motor Pinion Gear
Brake: Automatic disc type
Drum diameter/Length: 3.5"/8.5" (9cm/22cm)
Weight: 110 lbs. (50kgs.)
Wire rope: 150' ft, 5/16" diameter (46m, 8mm diam.)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m)
Finish: Powder coat with clear coat
Fastest line speed, longest wire rope, legendary performance
M8274-50 SPECS/PART NUMBERS
Part number: 38631 (12V)
Winch model: M8274-50
Rated line pull: 8,000 lbs., (3628 kgs.) single-line
Motor: Series Wound, 12V 4.6 hp/3.43kw, 24V 2.5 hp/3.43kw
Electrical controls: Solenoid
Remote Control: Remote switch, 12' (3.7m) lead
Gear train: Spur Gear
Gear ratio: 134:1
Clutch (freespooling): Sliding Motor Pinion Gear
Brake: Automatic disc type
Drum diameter/Length: 3.5"/8.5" (9cm/22cm)
Weight: 110 lbs. (50kgs.)
Wire rope: 150' ft, 5/16" diameter (46m, 8mm diam.)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m)
Finish: Powder coat with clear coat
Product Series
Manufacturer
Warn Industries is the world's most recognized brand in off-road products. The company designs, manufactures and markets a full line of off-road equipment and accessories that enhance the performance of four-wheel-drive vehicles and ATVs. As well, the WARN Industrial and WARN Works (for utilitarian use) brands offer high-performance, quality products for today's hard worker.
Application List
Universal
Details
Shipping Information
- Item Requires Shipping
- 121.0 lbs.
- W18.0000” x H11.0000” x L22.0000”
- Free Shipping!
