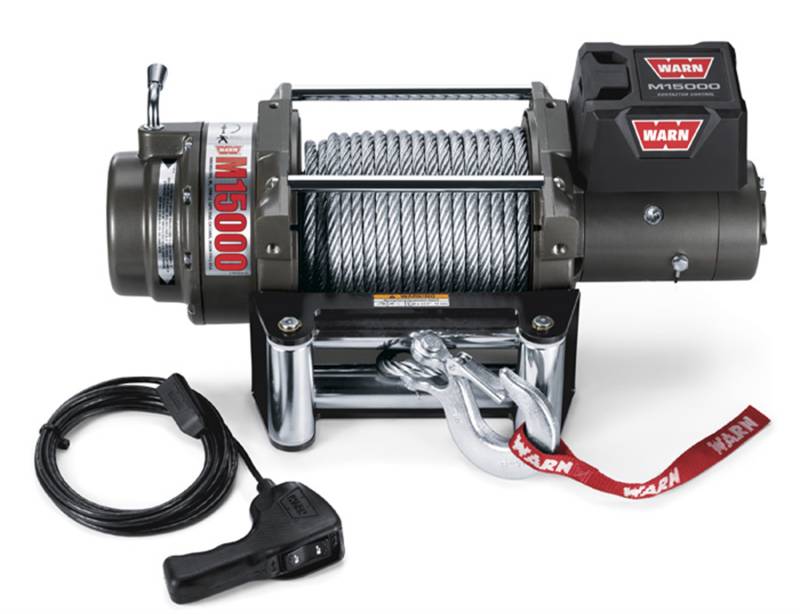

Warn M15 15,000 Lb. Self-Recovery Winch - 47801
Warn Winch - 15000 LB - 90 Ft Wire Rope Roller Fairlead Wired Remote
47801
WARN M15
Enough capacity for the heaviest loads
A heavy-duty 15,000 lb. capacity winch with a 4.6hp series wound motor. Direct drive cone braking system. Control pack is designed for clearance and ease of access. Comes with 90' of 7/16" wire rope.
High strength carrier plates are designed to handle heavy gear train stresses
Series-wound, high-speed motor provides fast line speed and strong pulls
Brake provides superior control while winching
Remote-mount control box allows for various mounting options
Durable 3-stage planetary geartrain for smooth, reliable, operation
Remote control with 12' (3.7m) lead
Chip-resistant powder-coated finish
90' of 7/16" (27m of 11mm) diameter wire rope
Enough capacity for the heaviest loads
A heavy-duty 15,000 lb. capacity winch with a 4.6hp series wound motor. Direct drive cone braking system. Control pack is designed for clearance and ease of access. Comes with 90' of 7/16" wire rope.
High strength carrier plates are designed to handle heavy gear train stresses
Series-wound, high-speed motor provides fast line speed and strong pulls
Brake provides superior control while winching
Remote-mount control box allows for various mounting options
Durable 3-stage planetary geartrain for smooth, reliable, operation
Remote control with 12' (3.7m) lead
Chip-resistant powder-coated finish
90' of 7/16" (27m of 11mm) diameter wire rope
Pricing:
$2,549.99
Description
WARN M15
Enough capacity for the heaviest loads
M15 SPECS/PART NUMBERS
Part number: 47801 (12V)
Rated Line Pull: 15,000 lbs. (6804 kgs) single-line
Motor: Series Wound, 12V 4.6 hp, 24V 2.5 hp
Electrical controls: Contactor
Remote Control: Remote switch, 12 ft (3.7m) lead
Geartrain: 3-Stage Planetary
Gear ratio: 315:1
Clutch (freespooling): Rotating Ring Gear
Brake: Automatic mechanical cone
Drum diameter/Length: 3.5 in /8.2 in (9cm/21cm)
Weight: 136 lbs. (62kgs.)
Wire rope: 90 ft, 7/16 in (27m, 11mm) diameter
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72 in (1.83m)
Finish: Argent Gray Powder Coat
Enough capacity for the heaviest loads
M15 SPECS/PART NUMBERS
Part number: 47801 (12V)
Rated Line Pull: 15,000 lbs. (6804 kgs) single-line
Motor: Series Wound, 12V 4.6 hp, 24V 2.5 hp
Electrical controls: Contactor
Remote Control: Remote switch, 12 ft (3.7m) lead
Geartrain: 3-Stage Planetary
Gear ratio: 315:1
Clutch (freespooling): Rotating Ring Gear
Brake: Automatic mechanical cone
Drum diameter/Length: 3.5 in /8.2 in (9cm/21cm)
Weight: 136 lbs. (62kgs.)
Wire rope: 90 ft, 7/16 in (27m, 11mm) diameter
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72 in (1.83m)
Finish: Argent Gray Powder Coat
Product Series
Manufacturer
Warn Industries is the world's most recognized brand in off-road products. The company designs, manufactures and markets a full line of off-road equipment and accessories that enhance the performance of four-wheel-drive vehicles and ATVs. As well, the WARN Industrial and WARN Works (for utilitarian use) brands offer high-performance, quality products for today's hard worker.
Application List
Universal
Details
- 47801
- 47801
- 012748478010
- Warn
- New
Categories
Shipping Information
- Item Requires Shipping
- 135.0 lbs.
- W13.0000” x H10.2500” x L28.2500”
- Free Shipping!
