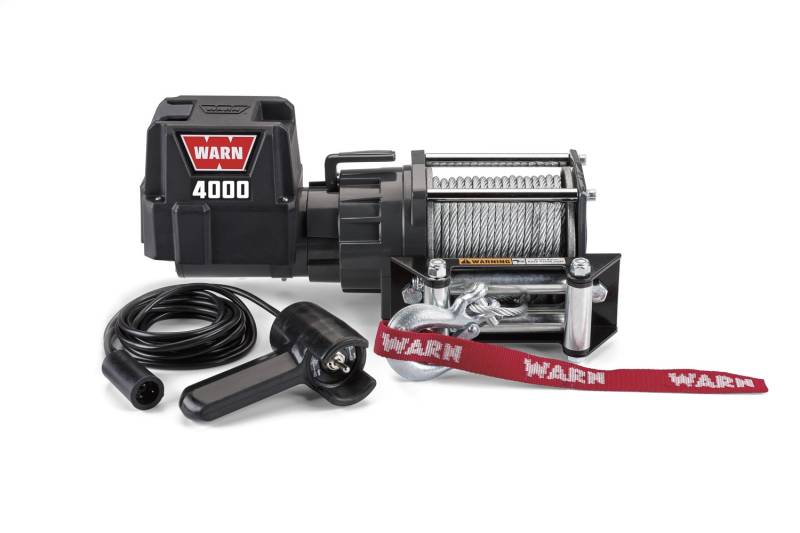

Warn 4000 Lb. 12 Volt DC Utility Hoist/Winch - 94000
Warn Winch - 12 Volt 4000 LB - 43 Ft Wire Rope Roller Fairlead Planetary Gear Drive
94000
WARN 4000 DC
Versatile and powerful - great for trailers or the jobsite
The hoist combines a powerful series wound DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The hoist is built on WARN's robust large frame design with a cast aluminum drum to provide plenty of wire rope capacity.
4,000 lb. (1814 kg) pulling capacity lets you move a variety of heavy objects
12-volt power for portability, ideal for use on trailers or hitch mounts
Outstanding duty cycle, durability, and reliability
Powerful 1.9 horsepower permanent magnet DC motor with outstanding duty cycle
43' of 7/32" (13m of 6mm) wire rope with hook and clasp
Remote plug accepts 12' (3.7m) corded remote (included)
Convenient easy-lift clutch lever
Durable, reliable three-stage planetary geartrain
Dynamic and mechanical braking for excellent control and holding power
Limited 1 Year Warranty
Versatile and powerful - great for trailers or the jobsite
The hoist combines a powerful series wound DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The hoist is built on WARN's robust large frame design with a cast aluminum drum to provide plenty of wire rope capacity.
4,000 lb. (1814 kg) pulling capacity lets you move a variety of heavy objects
12-volt power for portability, ideal for use on trailers or hitch mounts
Outstanding duty cycle, durability, and reliability
Powerful 1.9 horsepower permanent magnet DC motor with outstanding duty cycle
43' of 7/32" (13m of 6mm) wire rope with hook and clasp
Remote plug accepts 12' (3.7m) corded remote (included)
Convenient easy-lift clutch lever
Durable, reliable three-stage planetary geartrain
Dynamic and mechanical braking for excellent control and holding power
Limited 1 Year Warranty
Pricing:
$502.98
Description
WARN 4000 DC
Versatile and powerful - great for trailers or the jobsite
4000 DC SPECS
Part Number: PN 94000
Rated Line Pull: 4,000 lbs. (1864 kgs)
Motor: Permanent Magnet
HP: 1.9 HP
Power: 12 volt DC
Switch Type: Remote with 12'(3.7 m) Lead
Drum Diameter: 2.375" (6.03 cm)
Gear Train: 3-Stage planetary
Clutch: Lever - Multi-Directional
Hole Pattern: 3 holes
Gear Ratio: 176:1
Brake: Dynamic and mechanical braking
Rope: Wire, 7/32" X 43' (13 m)
Fairlead: Roller
Electrical Leads: 2 - 6' (1.8 m) x 6 gauge cable
Warranty: 1 year limited
Versatile and powerful - great for trailers or the jobsite
4000 DC SPECS
Part Number: PN 94000
Rated Line Pull: 4,000 lbs. (1864 kgs)
Motor: Permanent Magnet
HP: 1.9 HP
Power: 12 volt DC
Switch Type: Remote with 12'(3.7 m) Lead
Drum Diameter: 2.375" (6.03 cm)
Gear Train: 3-Stage planetary
Clutch: Lever - Multi-Directional
Hole Pattern: 3 holes
Gear Ratio: 176:1
Brake: Dynamic and mechanical braking
Rope: Wire, 7/32" X 43' (13 m)
Fairlead: Roller
Electrical Leads: 2 - 6' (1.8 m) x 6 gauge cable
Warranty: 1 year limited
Product Series
Manufacturer
Warn Industries is the world's most recognized brand in off-road products. The company designs, manufactures and markets a full line of off-road equipment and accessories that enhance the performance of four-wheel-drive vehicles and ATVs. As well, the WARN Industrial and WARN Works (for utilitarian use) brands offer high-performance, quality products for today's hard worker.
Application List
Universal
Details
Shipping Information
- Item Requires Shipping
- 36.0 lbs.
- W11.0000” x H9.0000” x L19.0000”
- Free Shipping!
