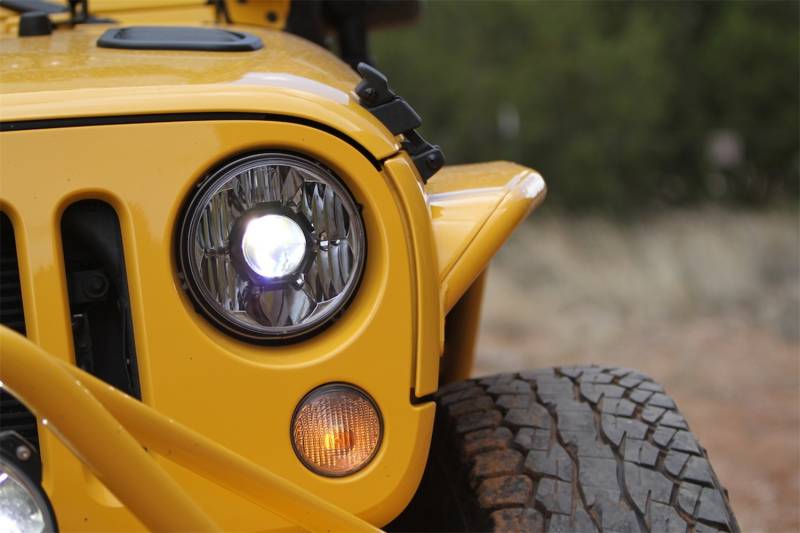

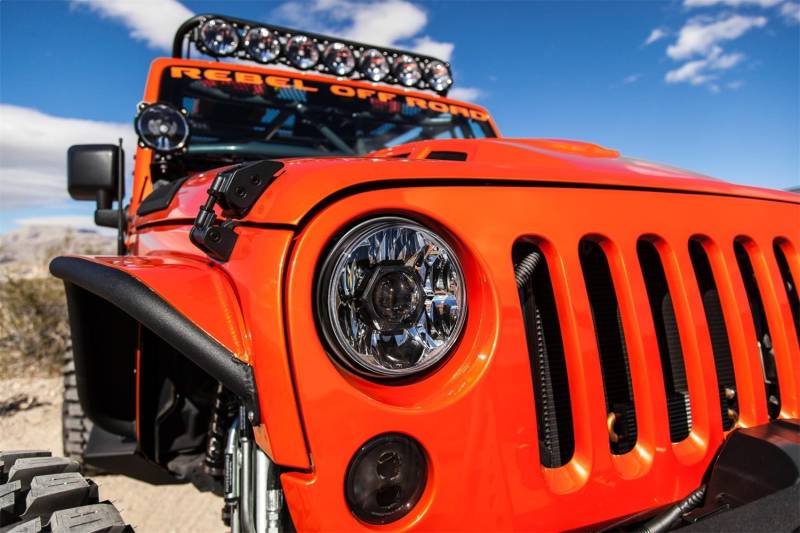

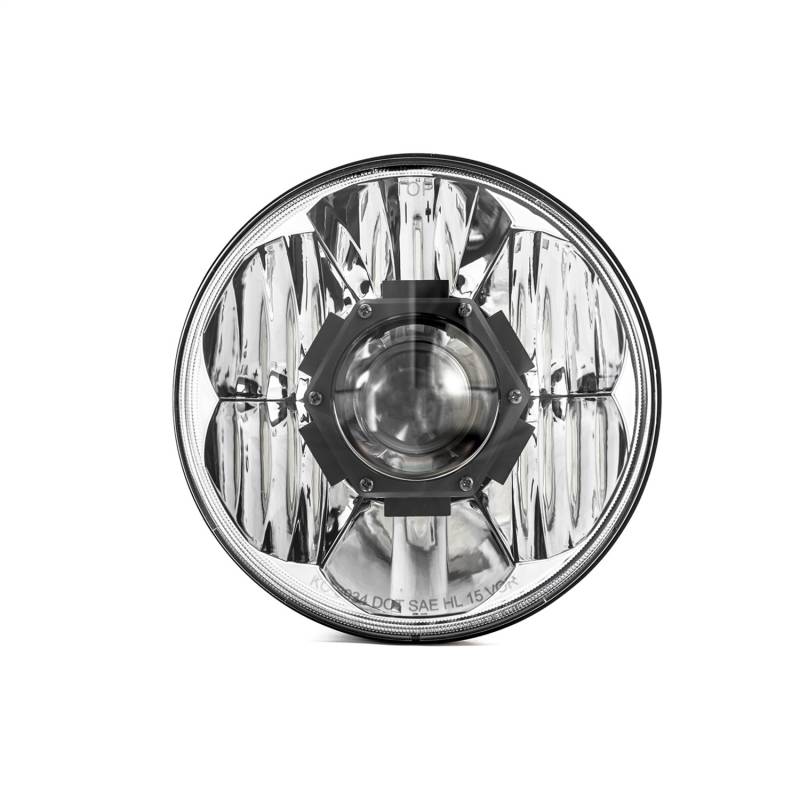

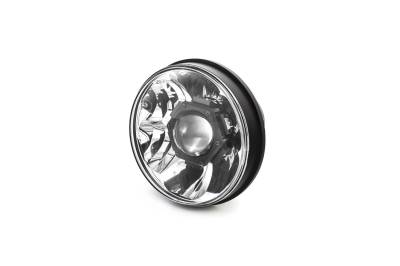

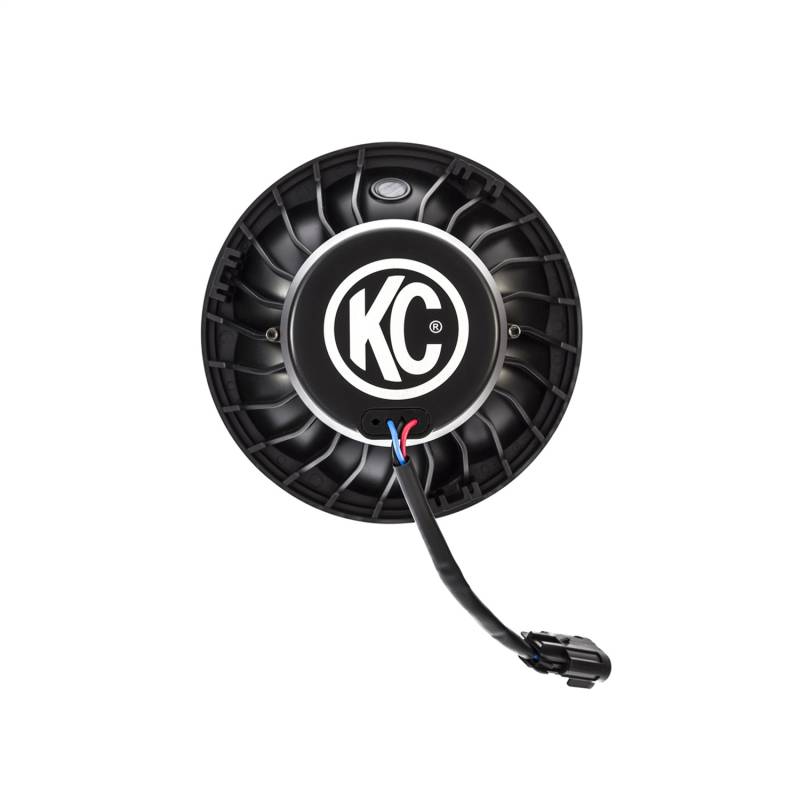

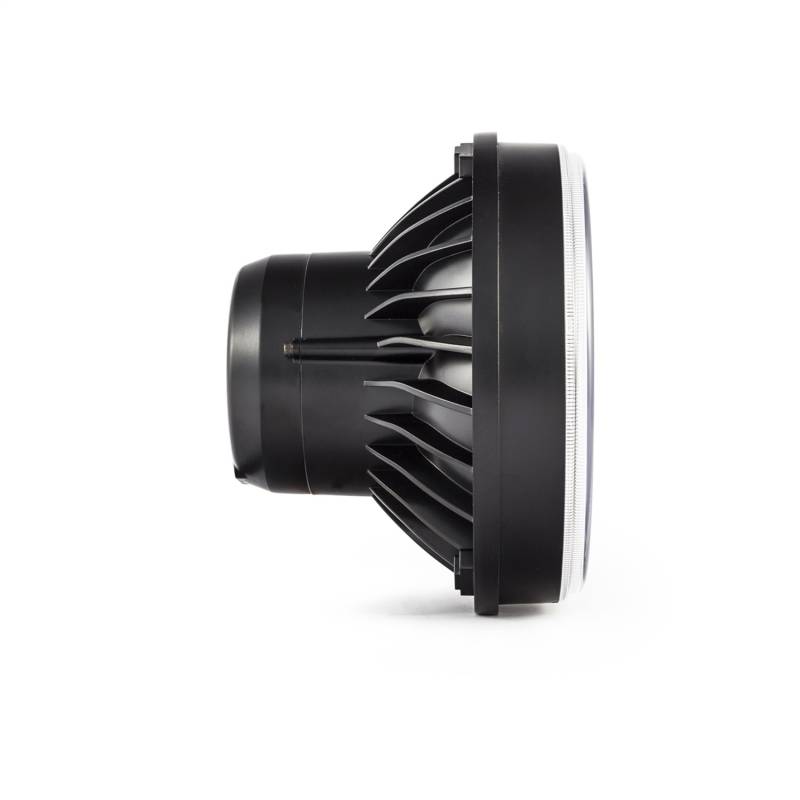

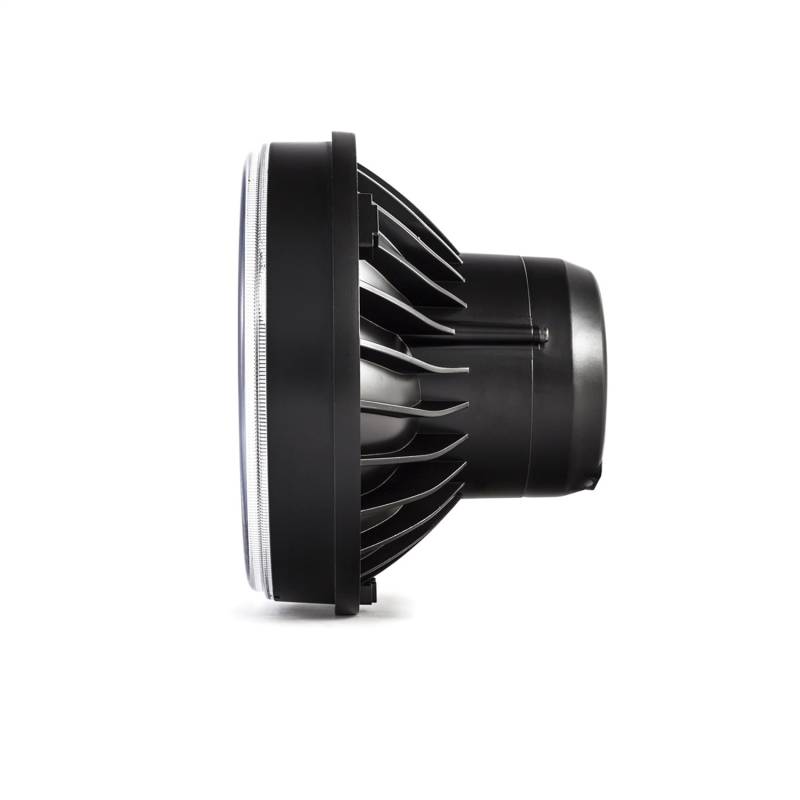

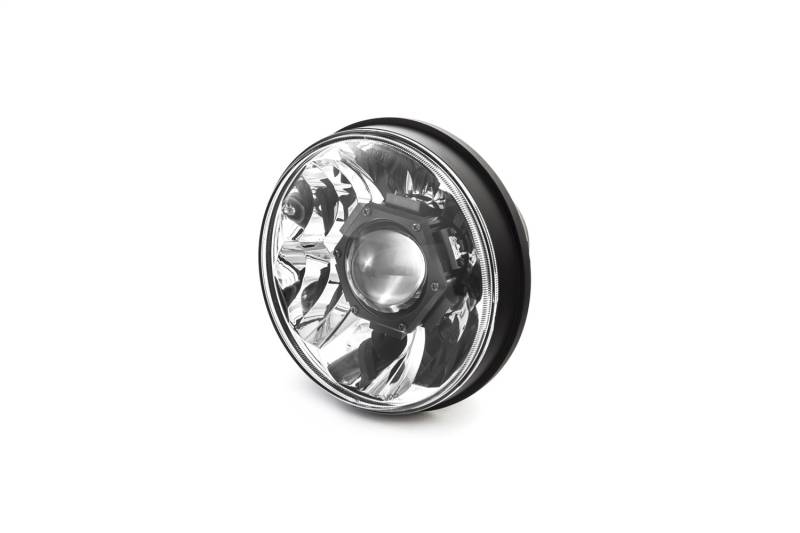

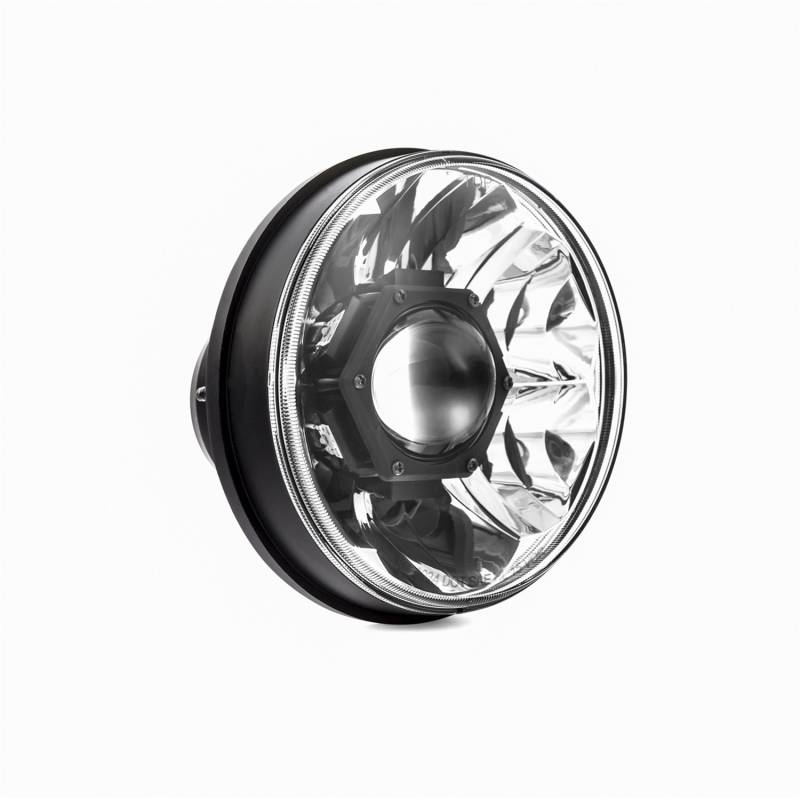

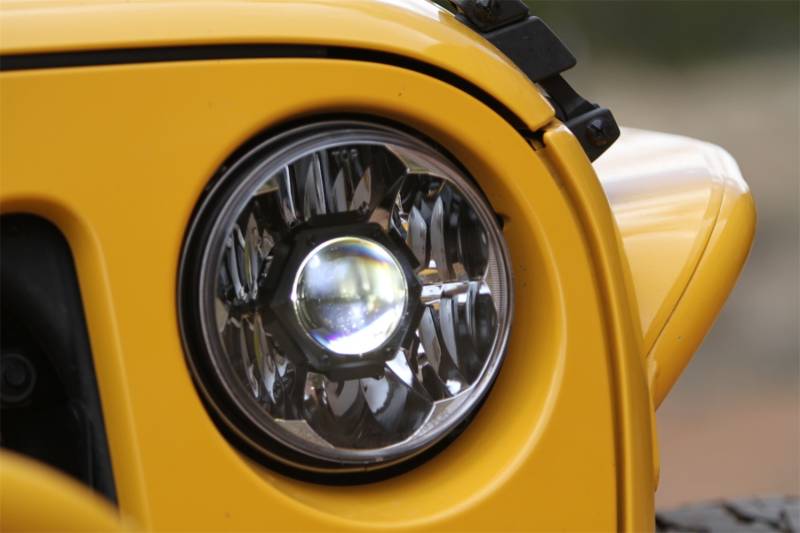

KC HiLites 4234 7 in. LED Headlight

4234

FEATURES-Patented Gravity Projector Optics (GPO)-DOT Compliant High/Low Beams with Day Running Light Support(Standard in Canada Spec 07-18 Jeep JK)-Hard Coated Polycarbonate Lens-Precision Die-Cast Aluminum Housing-Plug-n-Play for 07-18 Jeep JK/JKU With Factory Halogen HeadlightsLIGHT PERFORMANCE-Raw Lumens: Low- 2,967 lm, High-  2,575 lm, DRL- 386 lm-Lux @ 10 Meters: Low- 400 lx, High- 700 lx?-Candela: Low- 40,000 cd, High- 70,000 cd-Beam Distance: Low- 400m, High- 529mSPECIFICATIONS-Wattage: Low- 18W, High- 25W, DRL- 1.35W-LED Bulb: CREE: XP HI/XPG2-Color Temp: 5000K-Amp Draw: 1.88A-Voltage: 9V-18V-IP Rating: IP68-Product Dimensions: W - 6.96 in. x D - 5.098 in. GRAVITY LED EXTREME OUTPUT AND EFFICIENCYThe Gravity LED Pro 7 in. headlight uses KC's newly patented Gravity Projector Optic (GPO). Utilizing this proprietary projector lens technology along with a GRD LED core, KC engineers were able to deliver a more controlled beam pattern while setting new industry standards in light shape, clarity and output.HIGH-PERFORMANCE LED OPTICSThe Gravity LED Pro 7 in. Headlight features KC's patented Gravity GPO & GRD technology, which is engineered to direct every lumen from the LEDs to the reflector optics.HIGH/LOW/DRL FUNCTIONSHigh/Low beams with DRL functionality comes standard in this KC LED projector headlight greatly improving visibility and clarity over factory 07-18 Jeep JK halogen headlights.DESIGNED FOR DURABILITYSurrounding our high-performance Pro 7 in. Headlight is a durable die-cast housing and a hard coated Polycarbonate lens, designed to withstand the harshest climates, terrains and driving conditions.

  • Fits Most 7 in. Headlight Opening
  • 9-32 Volt Operating Range
  • Low Beam 1100 Lumens
  • High Beam 1650 Lumens
  • Proudly Made In The USA

Each - Pro - DOT Approved - 18/25 Watt - 40000/70000 Candela

Pricing: $434.99
Qty:
Free Shipping!

Description

KC HiLites - 7 in. LED Headlight P/N 4234 Features:

  • Fits Most 7 in. Headlight Opening
  • 9-32 Volt Operating Range
  • Low Beam 1100 Lumens
  • High Beam 1650 Lumens
  • Proudly Made In The USA

Product Series

Manufacturer

Every manufacturer tests their products. It's part of the process. At KC HiLiTES however, our ideas spend a lot of time in the laboratory before a light is even prototyped. We try to view our ideas as our customers do from the original inception to the final inspection. Is there a need; how can we best fill the need; how bright a light; what color of light; what shape pattern is needed; which housing is best suited for the application? These are just a few of the issues that we address before we really get started prototyping a new lighting unit. We prefer to test them in the real world of high performance racing. Since way back in 1970, feedback from professional drivers has helped steer our designs in the right direction. This open dialog with racers and enthusiasts has helped us to continually refine our thinking, and it shows in the performance of our products. It's also safe to say that every KC HiLiTES product that makes its way to market has graduated with honors from the school of hard knocks. At KC HiLiTES, we didn't become the dominant force in auxiliary lighting overnight. In fact, we've been traveling down that road for over 35 years, paved or not. Over that time, we've designed, engineered and manufactured the most advanced auxiliary lighting available. In the process, we've also built a rock solid reputation for quality and performance. That's why more and more drivers ask for KC HiLiTES by name. As the original manufacturer of off road auxiliary lighting, KC HiLiTES not only set the standard for the category, we created it. And while our thinking has always evolved, look close and you'll see a bit of our pioneering spirit in every new KC HiLiTES product.

Details

  • 4234
  • 4234
  • 084709042349
  • KC HiLites
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 3.0 lbs.
  • W7.2500” x H7.0000” x L7.2500”
  • Free Shipping!
