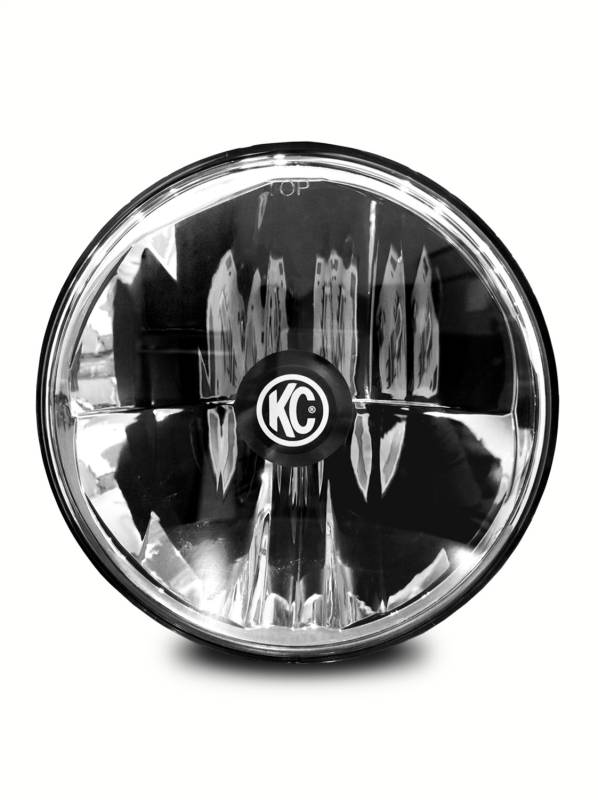

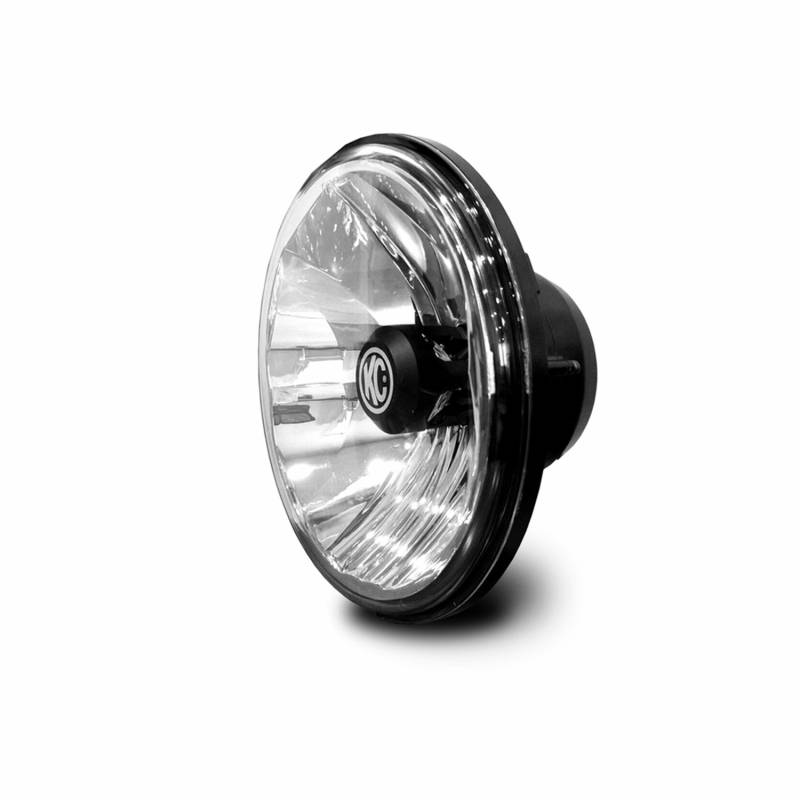

KC HiLites 4235 7 in. LED Headlight

4235

FEATURES-40W Gravity LED 7 in. Headlight-Hard Coated Polycarbonate Lens-Full Plug-n-Play for 07-18 Jeep JK Wrangler-Precision Die-Cast Aluminum Housing-KC Engineered Polished Reflector Optics-DOT Compliant Low Beam, High Beam and Day Running LightLIGHT PERFORMANCE(PER LIGHT)-Raw Lumens: Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm-Compliance: SAE J851 & ECE-R112-Lux @ 10 Meters: Low- 415 lx, High- 775 lx-Candela: Low- 41,500 cd, High- 77,500 cd-Beam Distance: Low- 407m, High- 557mSPECIFICATIONS(PER LIGHT)-Wattage: Low- 18W, High- 22W-LED Bulb: CREE XHP35 HI and Nichia-Color Temperature: 5000K-Amp Draw: 1.88A-Voltage: 9V-18V-IP Rating: IP68 -Product Dimensions: W - 6.96 in. x D - 3.72 in.Parts Included with 7 in. Headlight-Plug and Play H13 Connector for Jeep JK Gravity EXTREME OUTPUT AND EFFICIENCY Gravity LED 7 in. Headlights feature KC's patented Gravity Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.HIGH/LOW/DRL FUNCTIONS BUILT INKC's Headlights now feature Low Beam, High Beam, and Daytime Running Light functionality while improving visibility and clarity over factory 2007-2018 Jeep Wrangler JK headlights.DESIGNED FOR DURABILITYSurrounding our Gravity LED 7 in. Headlight is a durable die-cast housing, and a hard coated Polycarbonate lens, all of which is designed to withstand the harshest climates, terrains and driving conditions.

  • Fits Most 7 in. Headlight Opening
  • 9-32 Volt Operating Range
  • Low Beam 1100 Lumens
  • High Beam 1650 Lumens
  • Proudly Made In The USA

Each - DOT Approved - 18/22 Watt - 41500/77500 Candela

Pricing: $371.99
Qty:
Free Shipping!

Description

KC HiLites - 7 in. LED Headlight P/N 4235 Features:

  • Fits Most 7 in. Headlight Opening
  • 9-32 Volt Operating Range
  • Low Beam 1100 Lumens
  • High Beam 1650 Lumens
  • Proudly Made In The USA

Product Series

Manufacturer

Every manufacturer tests their products. It's part of the process. At KC HiLiTES however, our ideas spend a lot of time in the laboratory before a light is even prototyped. We try to view our ideas as our customers do from the original inception to the final inspection. Is there a need; how can we best fill the need; how bright a light; what color of light; what shape pattern is needed; which housing is best suited for the application? These are just a few of the issues that we address before we really get started prototyping a new lighting unit. We prefer to test them in the real world of high performance racing. Since way back in 1970, feedback from professional drivers has helped steer our designs in the right direction. This open dialog with racers and enthusiasts has helped us to continually refine our thinking, and it shows in the performance of our products. It's also safe to say that every KC HiLiTES product that makes its way to market has graduated with honors from the school of hard knocks. At KC HiLiTES, we didn't become the dominant force in auxiliary lighting overnight. In fact, we've been traveling down that road for over 35 years, paved or not. Over that time, we've designed, engineered and manufactured the most advanced auxiliary lighting available. In the process, we've also built a rock solid reputation for quality and performance. That's why more and more drivers ask for KC HiLiTES by name. As the original manufacturer of off road auxiliary lighting, KC HiLiTES not only set the standard for the category, we created it. And while our thinking has always evolved, look close and you'll see a bit of our pioneering spirit in every new KC HiLiTES product.

Details

  • 4235
  • 4235
  • 084709042356
  • KC HiLites
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 3.0 lbs.
  • W7.2500” x H7.0000” x L7.2500”
  • Free Shipping!
