Fabtech K1062 Uniball Control Arm Lift System - 2007>2018 GM 1500
3" UNIBALL UCA SYSTEM W/PERF SH 07-18 GM C/K1500 P/U
This system offers a mild lift height with easy installation for clearance of 33 tall tires on 2014 C/K1500s w/ factory Steel suspension. Lift is accomplished by utilizing the factory front Coilover shocks with steel spacer system that helps retain the stock ride of the front suspension. The stock upper control arms are replaced with high quality tubular Uniball arms that allow unrestricted movement throughout the travel range. The arms are constructed of top quality material including .120 wall 4130 Chromoly tubing with a 1.50 OD and 1 FK Stainless PTFE Uniballs. These arms are the best on the market for aggressive offroad driving in harsh conditions. The front differential is relocated to keep CV angles proper with the new lift height while a 1/4 thick steel skid plate provides protection against offroad obstacles. Rear lift is accomplished with 1 1/2 rear lift block and u-bolts to help level the stance of the vehicles. Performance rear shock absorbers replace the stock units for increased damping.
- Simplified Design With Fast Install
- Steering Knuckles Retain Proper ESC
- No Loss Of Ground Clearance

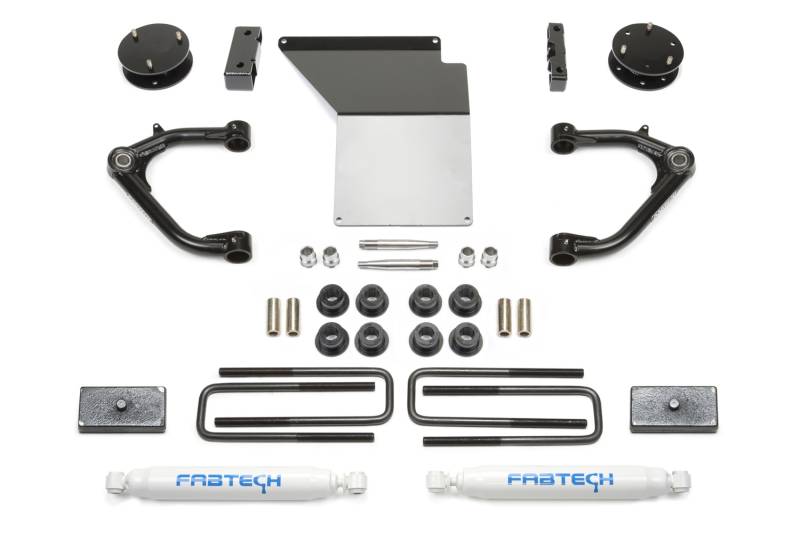

w/Rear Performance Shock - 4 in. Lift - Incl. Uniball Upper Control Arms - Differential Drop Brackets - Differential Skid Plate - Block/U-Bolts
Description
Fabtech - Uniball Control Arm Lift System P/N K1062 Features:
- Simplified Design With Fast Install
- Steering Knuckles Retain Proper ESC
- No Loss Of Ground Clearance
Product Series
Manufacturer
Fabtech has since grown into a world class manufacturer of Suspension Systems and accessories for the offroad enthusiast. Fabtech operates a 200,000 sq. ft facility in Chino, California performing all phases of R&D and Manufacturing in house.
Suspension designs are created internally and hand crafted by Fabtech's team of Race Shop fabricators and engineers for proper functionality and performance. State of the art CNC Lasers, Mills, Lathes and Welders construct each component for exceptional quality control and superior strength.
Unique designs, extensive testing and superior strength is why Fabtech builds the finest 2 & 4 Wheel Drive Suspension Systems on the market today.
Details
Shipping Information
- Item Requires Shipping
- 78.6 lbs.
- Free Shipping!
